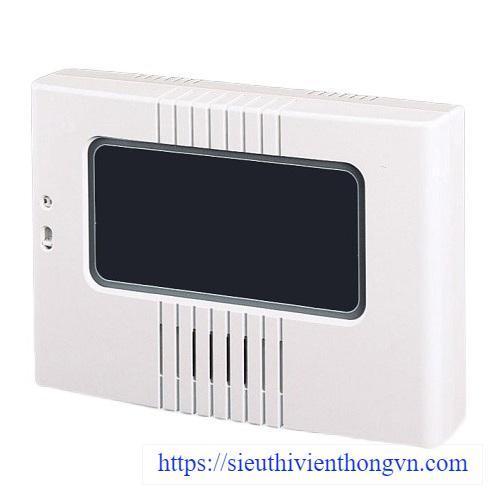

Repeater TAKEX BUS-RT1A
- By connecting the controller to the terminal device, it is possible to extend 1,000m (total wiring 4,000m). In addition, since up to three repeaters can be connected in series, the maximum distance between the controller and the final terminal is 4,000m.
- Applicable models are BUS-C630-2, BUS-C630-3, BUS-C730-3, BUS-C800.
Đặc tính kỹ thuật
| Power-supply voltage | Number of connections on the bus line terminal side: 30 or less 10.5 to 28 VDC (with polarity) Number of connections on the bus line terminal side: 31 or more, 20 to 28 VDC (with polarity) |
| Current consumption | 150mA + [Number of bus line terminals] x 3.5mA |
| Number of terminals that can be connected | Compliant with connection controller |
| Transmission method | Bus net method (time division multiplex transmission method) |
| Wiring length (terminal side) | When using Φ0.9mm AE wire (OP wire) Longest part: 1000m Branch: No restriction (1000m or less) Total wiring length: 4000m |
| Transmission speed | About 8-16msec / 1 unit |
| Indicator light | Power indicator: Energized: Green light |
| Wiring connection | M4 self-up terminal |
| Usable ambient temperature | -15°C to + 55°C (no condensation) |
| Installation location | Indoor (wall mounted) |
| mass | 600g |
| appearance | Resin (white) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
