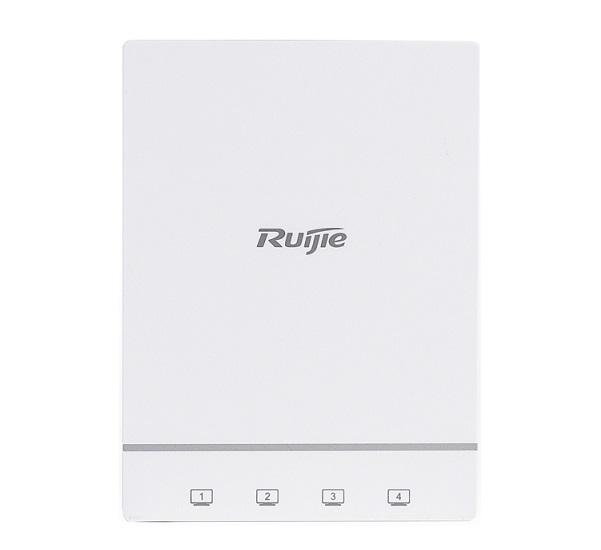

Wireless Access Point RUIJIE RG-AP180
- The 1st Wi-Fi 6 Enterprise Wall Plate Access Point with Wi-Fi 6 Alliance Certification.
- Built-in IoT Module (Built-in Bluetooth 5.0 and Zigbee) for future Smart of Things integration.
- Hidden Status LED Design – never disturbing your customer comfort.
- Universal wall plate design –mount kit option available for US/EU standard socket.
- Guarantee High Definition (HD) IPTV Application – upto 4 HD TV can be connected via the Gigabit LAN ports.
- OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference.
- AI Wireless Optimization: one-click optimization powered by Ruijie Cloud and WIS technology.
- Hybrid Management: support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service.
- Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers.
Specifications
| Model | RG-AP180 | |
| Hardware | ||
| Radio | Dual-radio dual-band: Radio 1: 2.4G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2x2 MIMO | |
| Protocol | Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax | |
| Operating Bands | 802.11b/g/n/ax: 2.4G ~ 2.483GHz 802.11a/n/ac/ax: 5.150~5.350GHz, 5.47~5.725GHz, 5.725~5.850GHz (vary depending on different countries) | |
| Spatial Streams | 4 spatial streams, 2x2 MIMO | |
| Max Throughput | Maximum throughput of 2.4G: 574Mbps Maximum throughput of 5G: 1.2Gbps Maximum throughput per AP: 1.775Gbps | |
| Transmit Power | ≤100mw (20dBm, radio transmit power only) | |
| Dimensions | 116mm * 86mm *40mm | |
| Weight | 0.37kg | |
| Port | 4 10/100/1000Mbps Ethernet ports 1 10/100/1000Mbps uplink port | |
| Power Supply | Support PoE Support local power supply (DC) | |
| 11ax Feature | Support 802.11ax Support MU-MIMO | |
| Management Port | 1 Micro USB port (hidden) | |
| Reset | Support (hidden) | |
| LED indicator | Support (hidden) The indicator can be switched off | |
| Built-in Antenna | Built-in low-radiation omnidirectional antenna (antenna gain 3.5dBi) | |
| IoT Protocol | Support Bluetooth5.0 (BLE), Zigbee | |
| Power Consumption | <10W | |
| IP Rating | IP41 | |
| Anti-theft | Standard: ordinary screws | |
| Color of AP Enclosure | White | |
| Environment | Operating temperature: 0°C~45°C Storage temperature: -40°C~70°C Operating humidity: 5％~95％ (non-condensing) Storage humidity: 5％~95％ (non-condensing) | |
| MTBF | 250,000 hours | |
| Software | ||
| WLAN | Maximum clients per AP | 1024 |
| BSSID capacity | 8（recommended to configure a maximum of 5 BSSIDs per radio in actual application） | |
| SSID hiding | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based speed control | |
| Security | PSK, Web, and 802.1x authentication | Support |
| Data encryption | WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) | |
| QR code authentication | Support (integration with RG-WS series wireless controller) | |
| SMS authentication | Support (integration with RG-WS series wireless controller) | |
| PEAP authentication | Support (integration with RG-WS series wireless controller) | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| Wireless Intrusion Detection System (WIDS) | Support | |
| Routing | IPv4 address | Static IP address or DHCP |
| IPv6 | Support | |
| Multicast – IGMP Snooping | Support | |
| Management and Maintenance | Supported wireless LAN controllers | Ruijie WS Series Wireless Controller |
| Ruijie MACC-Base Software Controller | ||
| Ruijie Cloud (Public Cloud) | ||
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
- Bảo hành: 3 năm.
