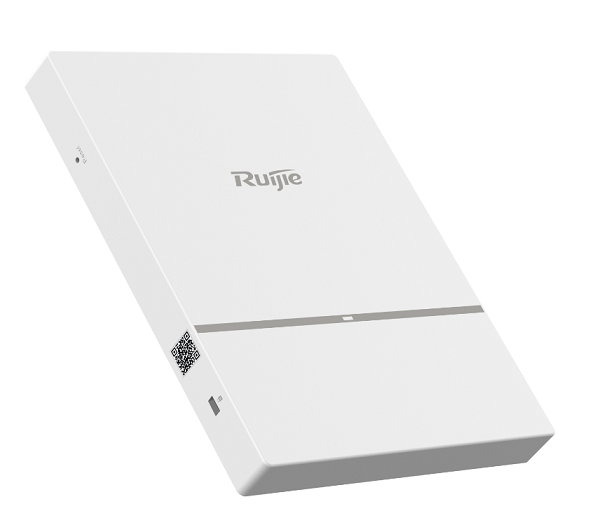

Wireless Access Point RUIJIE RG-AP820-L(V2)
- Wi-Fi 6 (802.11ax) indoor wireless access point.
- Selectable dual-band (5G+5G or 2.4G+5G), up to 4 total spatial streams and maximum 2.4Gbps wireless throughput.
- 1 10/100/1000BASE-T uplink port, support PoE and local power supply; Bundled with Ruijie Cloud Service lifetime license.
- PoE and local power adapters are sold separately.
- OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference.
- AI Wireless Optimization: One-click optimization powered by Ruijie Cloud technology.
- Hybrid Management: Support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service.
- Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers.
Specifications
| Model | RG-AP820-L(V2) | |
| Hardware | ||
| Radio | Dual-radio dual-band Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2x2 MIMO | |
| Protocol | Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac | |
| Operating Bands | 802.11b/g/n/ax:2.4G ~ 2.483GHz 802.11a/n/ac/ax: 5.150~5.350GHz, 5.47~5.725GHz, 5.725~5.850GHz (vary depending on different countries) | |
| Spatial Streams | Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz | |
| Max Throughput | Maximum throughput (5G+5G mode) per AP: 2.4Gbps Radio1：5G low band 1.2Gbps Radio2：5G high band 1.2Gbps 2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps Radio1：2.4G 0.574Gbps Radio2：5G 1.2Gbps | |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM) | |
| Antenna | Integrated antenna design | |
| Antenna Gain | 2.4G: 3dBi 5G: 3dBi | |
| Service Ports | 1 10/100/1000M Ethernet ports, PoE In | |
| Management Port | 1 console port | |
| Reset Button | Support | |
| Anti-theft Lock | Support | |
| LED Indicator | 1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access) | |
| Transmit Power | ≤100mw (20dBm) (vary depending on different countries) | |
| Adjustable Power | 1dBm | |
| Power Supply | Local power supply (DC 48V/1A) (Power adapters are sold separately) PoE (802.3af) – full spectrum operation | |
| Power Consumption | <12.95W | |
| Physical | ||
| Temperature | Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 70°C | |
| Humidity | Operating Humidity: 5% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) | |
| Installation Mode | Ceiling/wall-mountable | |
| Dimensions (W x D x H) | 153 x 193 x 26 mm (Height of the AP only, excluding the mount kit) | |
| Weight | ≤0.5kg (include mount kit) | |
| IP Rating | IP41 | |
| MTBF | 250,000 hours | |
| Safety Standard | GB4943, EN/IEC 62368-1 | |
| EMC Standard | GB9254, EN301 489 | |
| Radio Standard | SRRC, EN300 328, EN301 893 | |
| Software | ||
| WLAN | Maximum clients per AP | 1024 |
| BSSID capacity | Up to 32 | |
| SSID hiding | Support | |
| 5G Priority (Band Steering) | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Intelligent device recognition technology | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based bandwidth control | |
| Data encryption | WPA（TKIP), WPA-PSK, WPA2 (AES), WPA3, WEP (64/128 bits） | |
| PSK and web authentication | Support | |
| PPSK authentication (For Employee) | Support (require wireless controller) | |
| 802.1x authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| IP | IPv4 and IPv6 address | Support |
| Multicast routing | Multicast to unicast conversion | |
| DHCP service | DHCP Snooping, Option 82, Server, Client | |
| Management and Maintenance | Supported wireless LAN controllers | Ruijie WS Series Wireless Controller |
| Ruijie MACC-Base Software Controller | ||
| Ruijie Cloud (Public Cloud) | ||
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| LLDP | LLDP, LLDP-MED, LLDP-POE | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
- Bảo hành: 3 năm.
