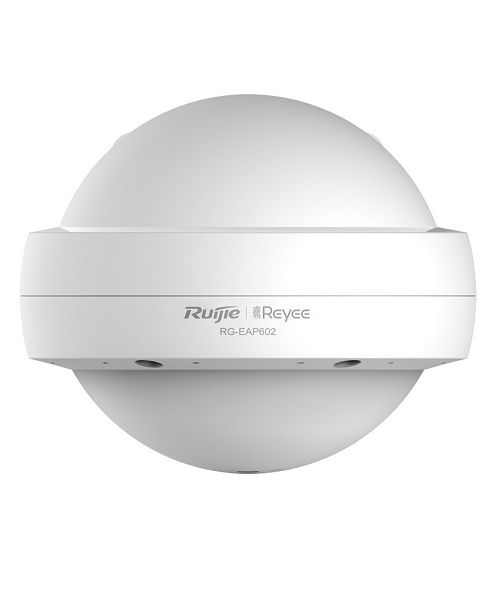

Wireless Access Point RUIJIE RG-EAP602
- AC1300 Dual Band Dual Band outdoor Access Point.
- 867Mbps at 5GHz + 300Mbps at 2.4GHz.
- 2 10/100/1000base-t Ethernet connection port (802.3at/af PoE).
- 4 Internal Antennas.
- 802.11ac Wave2 technology.
- 300m coverage radius.
- Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access.
- Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App.
- Stable wireless service under harsh environment: Surge Protection 6KV.
- IP Rating IP68 .
- Operating temperature: -30°C~65°C.
Specifications
| Model | RG-EAP602 |
| Radio | 2.4GHz & 5GHz dual-band dual-stream |
| Protocol | 2.4GHz: 802.11 b/g/n; 5GHz: 802.11a/b/g/n/ac |
| Spatial Streams | 2.4GHz: 2 Spatial Streams, 2x2 MIMO 5GHz: 2 Spatial Streams, 2x2 MIMO |
| Max Throughput | 2.4GHz: 300Mbps 5GHz: 867Mbps Up to 1167Mbps per AP |
| Transmit Power | ≤500mw（27dBm, RF transmit power only） |
| Dimensions | 200*220*166 mm (excluding mounting kits) |
| Weight | 1kg (excluding mounting kits) |
| Service Ports | 2 10/100/1000Mbps Ethernet ports (one of which supports 802.3af/at PoE) 1 reset button |
| Reset | 1 DC12V power socket |
| LED Indicators | Wi-Fi indicator, warning indicator, LAN1 connection indicator, LAN2 connection indicator |
| Power Supply | 802.3af/ 802.3at 12VDC/ 1.5A |
| Built-in Antennas | Built-in omnidirectional antennas (basic gain 3dBi) |
| Power Consumption | ＜12.95W |
| Coverage Radius | Open and unobstructed direction: 2.4G 100m, 5G 300m |
| Surge Protection | 6000V |
| IP Rating | Above IP68 |
| Environment | Operating temperature: -30°C~65°C |
| Storage temperature: -40°C~85°C | |
| Operating humidity: 0%~100% (non-condensing) | |
| Storage humidity: 0%~100% (non-condensing) | |
| MTBF | >250000H |
| Software | |
| WLAN | Maximum number of clients: 164 |
| Recommended number of clients: 96 | |
| Up to 8 SSIDs | |
| Support SSID hiding | |
| Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | |
| SSID-based and radio-based STA limit | |
| Support Layer 2 user isolation | |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Routing | Support static IP address and DHCP |
| Management and maintenance | Support local or remote management with app Support local management with web Support remote management with Ruijie Cloud platform |
- Bảo hành: 3 năm.
