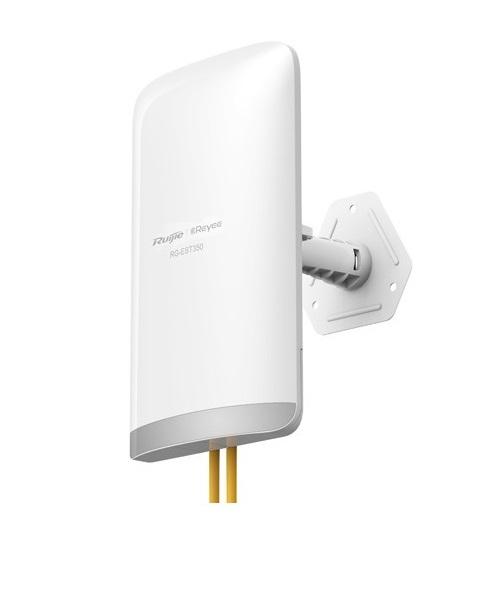

5GHz Dual-Stream 802.11AC Wireless Bridge RUIJIE RG-EST350
- RUIJIE RG-EST350 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as tower cranes, factories, scenic spots, campuses, planting bases, aquafarm breeding bases, and construction sites. Operating at 5GHz, RG-EST350 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services.
- Ports: Two 10/100/1000Base-T Ethernet ports, supports 24VDC non-standard PoE power supply, One DC port, supports 12VDC power supply.
- Chip: QCA9563+QCA9886.
- RAM/ Flash: 512MB/8MB.
- Radio: Dual-stream single-band 2×2.
- Operating Band: 802.11a/n/ac: 5.150~5.350GHz, 5.470~5.725GHz, 5.725~5.850GHz (country specific).
- Antenna: Directional antennas, horizontal: 31°, vertical: 14°, gain: 15dBi.
Specifications
| Model | RG-EST350 |
| Hardware | |
| Chip | QCA9563+QCA9886 |
| RAM/ Flash | 512 MB/8 MB |
| Radio | Dual-stream single-band 2×2 |
| Operating Band | 802.11a/n/ac: 5.150～5.350GHz, 5.470~5.725GHz , 5.725～5.850GHz (country specific) |
| Antenna | Directional antennas, horizontal: 31°, vertical: 14°, gain: 15 dBi |
| Bridging Distance | 5 km (recommended) |
| Spatial Streams | Two streams |
| Maximum Throughput | Up to 867 Mbps at 5 GHz |
| Transmit Power | ≤100 Mw(20 dBm) (adjustable) |
| Dimensions | 230 mm(D)×132 mm(W)×48 mm(H) (Dimensions per device) (Same size for the recorder-end and camera-end, H: height of the device edge excluding the mounting kits) |
| Weight | 0.6 kg |
| Ports | Two 10/100/1000Base-T Ethernet ports, supports 24 VDC non-standard PoE power supply One DC port, supports 12 VDC power supply |
| Hardware Button | 1 reset button |
| Status Indicators | System indicator: 1 |
| Port indicator: 2 | |
| Bridge signal strength indicators: 3 | |
| Power Supply | Support 12 VDC power supply and 24 VDC non-standard PoE power supply |
| Power Consumption | |
| Environment | Operating temperature: -30°C to 65°C |
| Storage temperature: -40°C to 85°C | |
| Operating humidity: 5% to 95% (non-condensing) | |
| Storage humidity: 5% to 95% (non-condensing) | |
| Installation | Wall-mounted/ Pole-mounted (hose clamp is provided) |
| IP Rating | IP65 |
| Lightning Protection | 4 KV |
| Radio Standard | EN300 328, EN301 893 |
| Software Features | |
| Automatic Bridging | Support The recorder-end and camera-end are automatically paired for bridging by default |
| One-to-many Bridging | One-to-three bridging is recommended for the wireless coverage scope at an |
| Device Configuration and Management | angle of 31° to the horizontal. Support App/Web configuration |
| QR Code Login | Users can log in to the device configuration interface by scanning the QR code of the device using the app |
| Self-healing | Automatic restart upon equipment failure |
| Automatic Channel Adjustment | Automatically adjust the channel upon power-on |
- Bảo hành: 3 năm.
