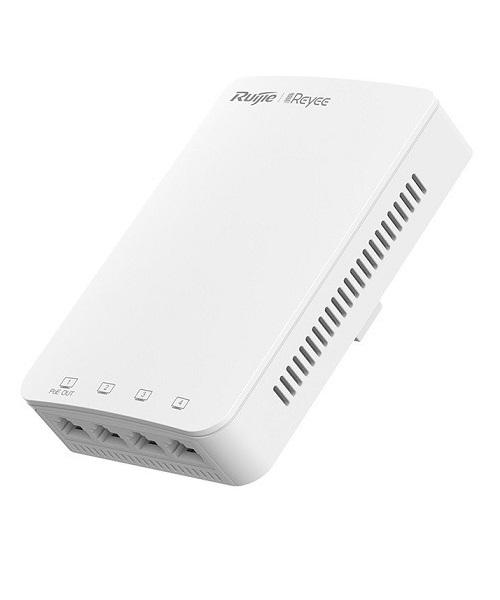

Dual-Band Gigabit Wall Plate Access Point RUIJIE RG-RAP1200(P)
- Ruijie Reyee Series RG-RAP1200(P) dual-band gigabit wall plate AP is a high-performance wall plate AP for small and medium-sized indoor Wi-Fi scenarios, such as offices, commercial industry, hotels, service scenarios, etc.
- With 802.3af/at PoE support, the AP provides 4 LAN ports at the front, including 1 PoE out port, to facilitate the connection of IPTV, IP phone, etc.
- The AP also provides 1 Gigabit uplink port on the rear panel.
- Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the AP supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas.
- It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP.
Specifications
| Hardware | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n: 2.4G ~ 2.4835GHz 802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz |
| Antenna | built-in antenna |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | 2.4G: up to 400Mbps 5G: up to 867Mbps Access rate per AP: 1.267Gbps |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
| Maximum Transmit Power | 20 dBm (adjustable) |
| Adjustable Power | 1dBm |
| Dimensions | 126×86×46.3 mm (excluding barckets) |
| Weight | ≤0.24kg (excluding barckets) |
| Service Ports | Front: 4 10/100/1000Base-T Ethernet ports LAN1 port supports IEEE.802.3af PoE OUT Rear: 1 10/100/1000Base-T Ethernet port |
| LED Indicator | 1 LED indicator |
| Power Supply | Support PoE (802.3af/at) |
| Power Consumption | ≤8W (max power consumption is 23.4W PoE output included ) |
| Environment | Operating temperature: 0°C~40°C (32℉ to 104℉) Storage temperature: -40°C~70°C (-40℉ to 158℉) Operating humidity: 5%~95% (non-condensing) Storage humidity: 5%~95% (non-condensing) |
| Installation | Wall plate installation |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >250000H |
| Software | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 110 Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz) Up to 8 SSIDs Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
- Bảo hành: 3 năm.
