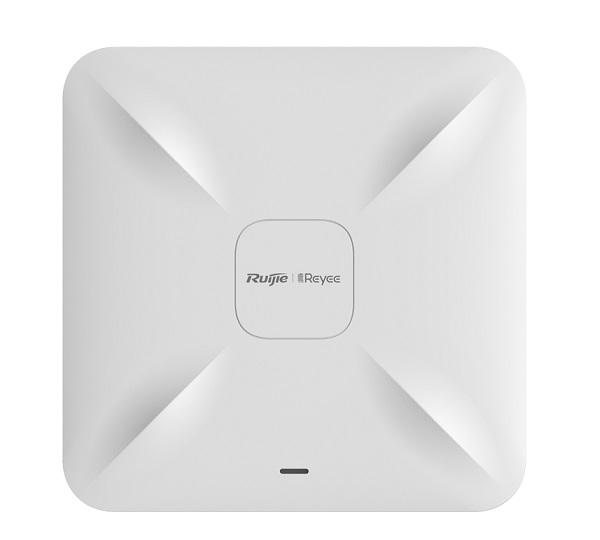

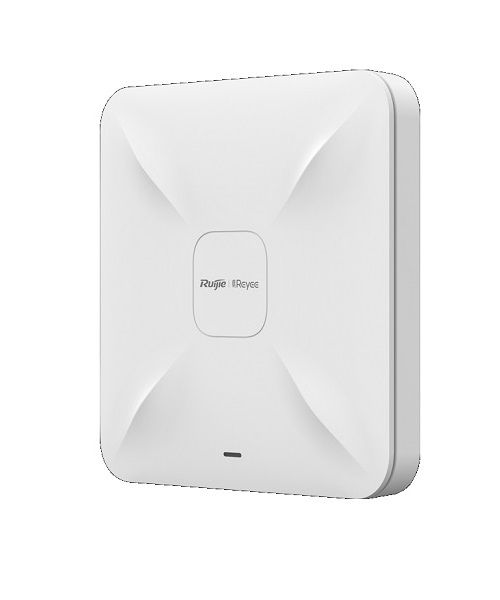

Ceiling Mount Access Point RUIJIE RG-RAP2200(E)
- Dual Band Ceiling Mount Access Point, Qualcomm.
- 867Mbps at 5GHz + 300Mbps at 2.4GHz.
- 2 10/100/1000base-t Ethernet connection port (802.3at/af PoE).
- 4 Internal Antennas.
- 802.11ac Wave2 technology
- Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access.
- Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App.
- More LAN Port: Two LAN interfaces are provided to support more services;
- Seamless layer 3 roaming.
- Industrial Design: Robust casing, Provide better strength and safety for products.
Specifications
| Model | RG-RAP2200(E) |
| Hardware | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n: 2.4G ~ 2.4835GHz 802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz |
| Antenna | Array antennas（2.4G: 2dBi，5G: 2dBi） |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | Up to 400Mbps at 2.4G Up to 867Mbps at 5G 1.267Gbps per AP |
| Maximum Transmit Power | 5.725~5.850GHz: ≤20dBm (EIRP) 5.150~5.350GHz: ≤20dBm (EIRP) 2.4~2.4835GHz: ≤20dBm (EIRP) |
| Adjustable Power | 1dBm |
| Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
| Weight | 0.45kg (excluding mounting kits) |
| Service Ports | 2 10/100/1000Base-T Ethernet ports, PoE/LAN 1 port supports PoE |
| Power Consumption | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE |
| Environment | Operating temperature: 0°C～40°C Storage temperature: -40°C～70°C |
| MTBF | >400000H |
| Software | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 110 |
| Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz) | |
| Up to 8 SSIDs | |
| Support SSID hiding | |
| Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | |
| SSID-based and radio-based STA limit | |
| Support Layer 2 user isolation | |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication |
| Support static blacklist and whitelist | |
| Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
| Platform management features | Automatic RF adjustment via the platform |
| Unified configuration via the platform | |
| Unified monitoring via the platform | |
- Bảo hành: 3 năm.
