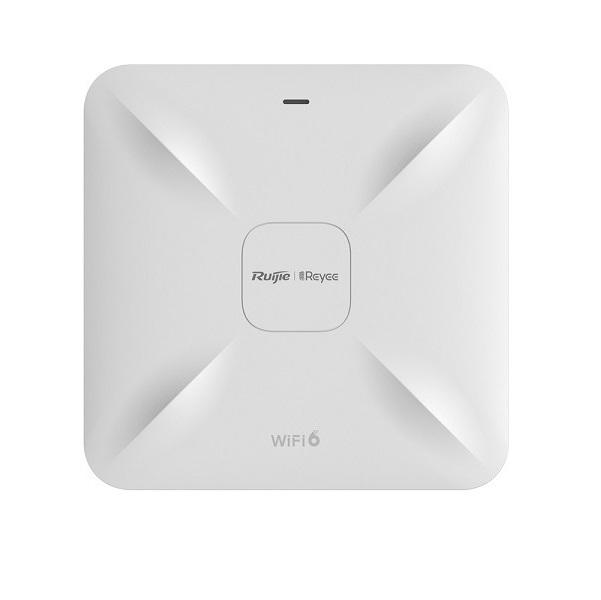

Wi-Fi 6 Dual Band Ceiling Mount Access Point RUIJIE RG-RAP2260(E)
- Ruijie Reyee RG-RAP2260(E) is a high-performance Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenario.
- RG-RAP2260(E) supports dual-band operate concurrently and MU-MIMO, but it supplies more advanced technology about quad-stream. So it can provide higher speed wireless access of 800Mbps at 2.4GHz, 2402Mbps at 5GHz and up to 3202Mbps per AP. One of the ethernet ports is upgrated to multi-gigabit Ethernet (2.5GE) port to break through the bottleneck of transmission performance.
- The coverage of RG-RAP2260(E) is over 25 meters, makes it an ideal choice for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc.
Specifications
| Hardware specifications | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n: 2.4G ~ 2.4835GHz 802.11a/n/ac/ax: 5G: 5.150~5.350GHz，5.725~5.850GHz (country specific) |
| Antenna | Internal antennas (2.4G: 3dBi, 5G: 3dBi) |
| Spatial Streams | 2.4G 4x4MIMO 5G 4x4MIMO |
| Max Throughput | Up to 800Mbps at 2.4G Up to 2402Mbps at 5G 3.202Gbp per AP |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps |
| DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps | |
| MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and1024QAM | |
| OFDMA | |
| Receive Sensitivity | 11b: -96dBm(1Mbps), -93dBm(5Mbps), -89dBm(11Mbps) |
| 11a/g: -91dBm(6Mbps), -85dBm(24Mbps), -80dBm(36Mbps), -74dBm(54Mbps) | |
| 11n: -90dBm(MCS0), -70dBm(MCS7), -89dBm(MCS8), -68dBm(MCS15) | |
| 11ac: 20MHz: -88dBm(MCS0), -63dBm(MCS9) 40MHz: -85dBm(MCS0), -60dBm(MCS9) 80MHz: -85dBm(MCS0), -60dBm(MCS9) | |
| Wi-Fi 6: 80MHz: -82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11) | |
| Maximum output power of the transmitter (single stream) | 2.4GHz (2.4~2.4835GHz): 23dBm 5GHz (5.150~5.250GHz, 5.725~5.850GHz): 23dBm (country-specific, comply with local laws) |
| Adjustable Power | 1dBm |
| Dimensions | 220 × 220 × 35mm (excluding mounting kits) |
| Weight | 1.05kg (excluding mounting kits) |
| Service Ports | 1 10/100/1000M/2.5G Base-T Ethernet ports supports PoE; 1 10/100/1000M Base-T, Ethernet port |
| LED Indicator | Single indicator (green light) |
| Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning: 802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) |
| Power Consumption | ≤ 25.4W |
| Environment | Operating temperature: 0°C～40°C |
| Storage temperature: -40°C～70°C | |
| Operating humidity: 5％～95％ (non-condensing) | |
| Storage humidity: 5％～95％ (non-condensing) | |
| Installation | Ceiling/wall-mountable |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >400000H |
| Software Features | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 512 |
| Recommended number of clients: 120 | |
| Up to 8 SSIDs | |
| Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | |
| SSID-based and radio-based STA limit | |
| Support Layer 2 user isolation | |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication |
| Support static blacklist and whitelist | |
| Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment |
| Support local or remote management with Ruijie Cloud app | |
| Support local management with web | |
| Support remote management with Ruijie Cloud platform | |
| Platform management features | Automatic RF adjustment via the platform |
| Unified configuration via the platform | |
| Unified monitoring via the platform | |
- Bảo hành: 3 năm.
