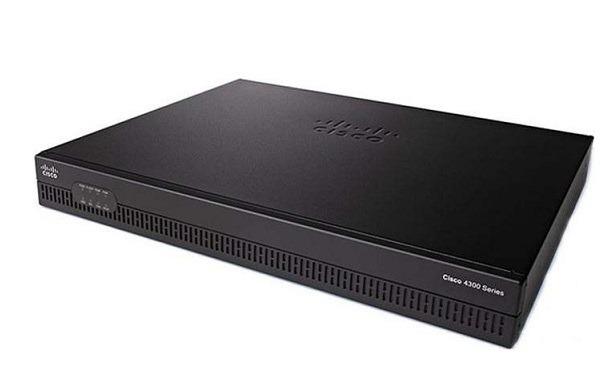

Router Integrated ISR 4321 Cisco ISR4321-SEC/K9
- Cisco ISR4321-SEC/K9 is the Cisco ISR4321/k9 Router with Security Bundle. Its other specifications are the same as ISR4321/k9.
- Support 2-port 10/100/1000Mbps WAN or LAN.
- Aggregate Throughput: 50Mbps to 100Mbps.
- Memory: 4GB (default)/8GB (maximum).
- Rack height: 1 RU.
- Dimensions (H x W x D): 44.55 x 369.57 x 294.64 mm.
- Weight: 9.19 Kg.
Specifications
| Model | ISR4321-SEC/K9 |
| Type | Cisco ISR4321/K9 with Security Bundle |
| Aggregate Throughput | 50 Mbps to 100 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
| Default flash memory | 4 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | External: AC and PoE |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 36 |
| Maximum power with AC power supply (watts) | 125 |
| Maximum power with PoE power supply (platform only) (watts) | 260 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 44.55 mm x 369.57 mm x 294.64 mm |
| Package Weight | 9.19 Kg |
- Bảo hành: 12 tháng.
