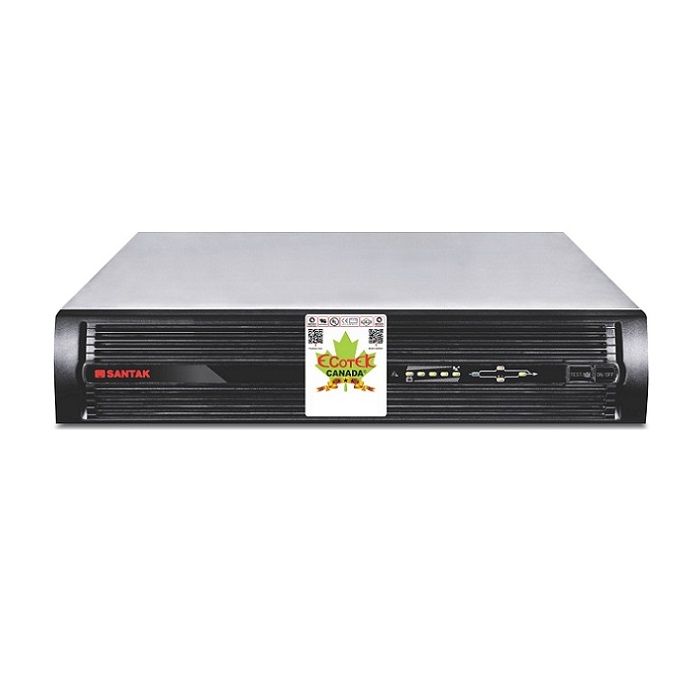

Nguồn lưu điện 1KVA UPS SANTAK Rack 1K
- Khuôn dạng: Rack mount
- Công nghệ: Online Double Conversion Technology
- Công suất: 1KVA / 0.9KW
- Nguồn vào: Điện áp (110-300)VAC; 40Hz ~ 70Hz
- Nguồn ra: Điện áp 220*(1 ± 2%)VAC; 50Hz ± 0.05Hz
- Kết nối lấy điện ngõ ra: 6 ổ cắm chuẩn IEC C13
- Thời gian chuyển mạch: 0 mili giây
- Giao tiếp máy tính: USB
- Card giao tiếp mở rộng tùy chọn: NMC Card, Modbus Card, Relay Card
- Thời gian lưu điện: > 4.5 phút với 80% tải
- Khối lượng: 11 Kg
- Kích thước UPS (Rộng x Dài x Cao): 438 x 420 x 87 mm
Thông số kỹ thuật
| Rated Power | |
| Nominal Power Capacity | 1KVA / 0.9KW |
| Input | |
| Voltage Range | (110-300)VAC |
| Frequency Range | 40Hz ~ 70Hz |
| Power Factor | 0.98 |
| Battery and Charger | Type: Maintenance – free Sealed Lead-acid UPS Batteries Rated battery Voltage: 24V Number of Internal Battery: 2PCS Recharge current: 1A |
| Output | |
| Nominal Voltage | 220*(1 ± 2%)VAC |
| Frequency Range | |
| Line mode | Same with main |
| Battery mode | 50Hz ± 0.05Hz |
| Power Factor | 0.9@30ºC and 0.8@40ºC |
| Overload Capability | 105% ~ 150% for 47 sec – 25 sec. 150% ~ 200% for 25 sec – 300 mili sec. > 200% for 200 mili sec (0.8PF) |
| Output Connections | IEC C13 * 6 pcs |
| Transfer time | |
| Utility Power Failure | 0 ms |
| Battery Mode Inverter Mode | 0 ms |
| Inverter Mode Bypass Mode | < 4 ms |
| Backup Time | 80% load, 0.8PF> 4.5 minutes |
| LED Indicators | |
| Status | Load level / Battery capacity, UPS working mode |
| Alarm | Battery Discharge Battery full: 1 buzzing/4s; Battery empty: 1 buzzing/1s UPS Alarm: Buzzing continue |
| Auto restart | Auto restart while mains recover |
| Communications Interface | USB: monitoring Optional parts: NMC Card, Modbus Card, Relay Card |
| Environment | |
| Operating temperature | 0 ~ 40ºC |
| Operating Humidity | < 95% |
| Dimension | |
| UPS | 11kg |
| Dimensions (W x Dx H) | 438*420*87 mm |
- Bảo hành: 36 tháng.
