FEATURES HIGHLIGHTS

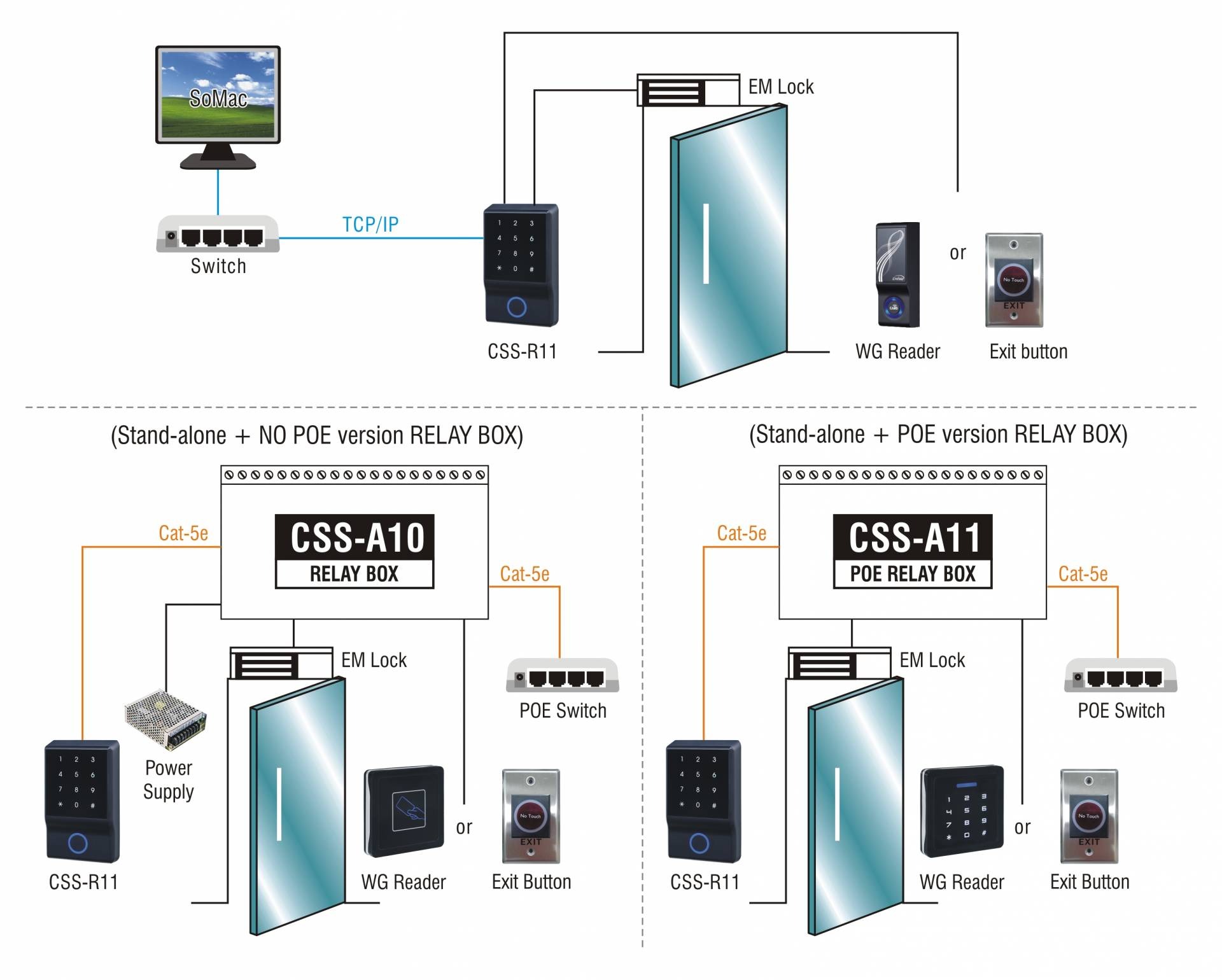

- Compatible with CSS-R11 for Single or multi doors control structure.
- Built-in Watch-dog (Watch Dog).
- Support door sensor detection, short or open.
- Support Wiegand input, exit button, door sensor, WG reader contacts
- RS485 communication control relay for providing the high security level. In the emergency mode, when controller is disconnected, exit button still could have function.
PRODUCT SPECIFICATION

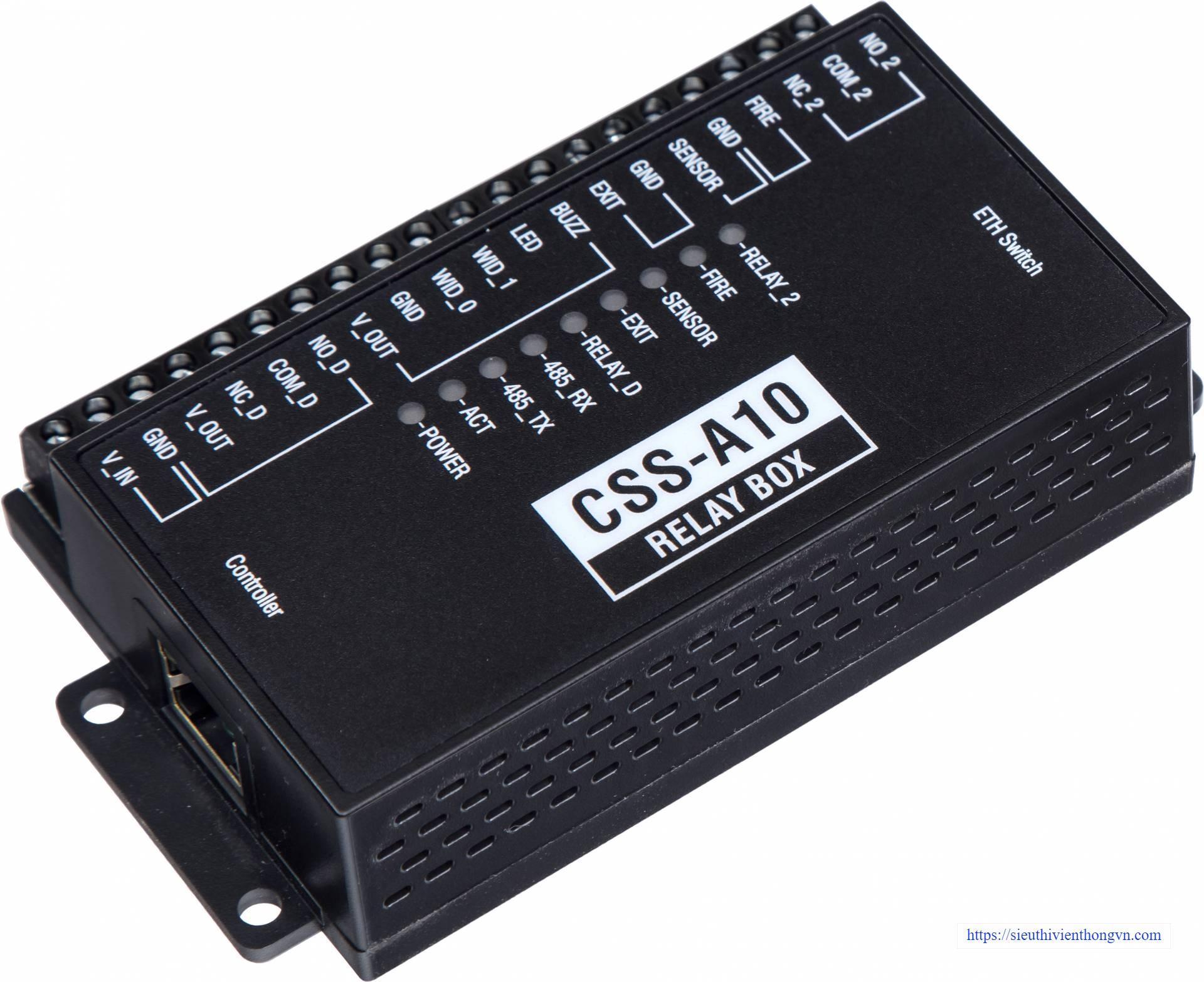

- Model Name : CSS-A10
- Power Requirement : DC 9~24V
- Recommend Requirement : DC 12V 1A (Door lock excluded) DC 12V 2A (Door lock included)
- Wiegand Range : Max 100M
- Relay Power Requirment : Max DC 30V 3A (Doesn't support AC Power)
- Dimension : 105.05 x 71.75 x 28.3 mm
- Weight : 135g
