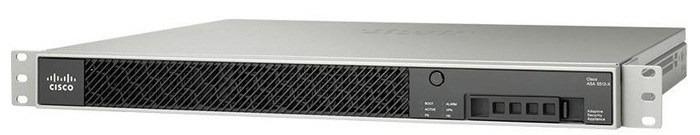

Security Router CISCO ASA5515-K9
– 250 IPSec VPN peers, up to 1.2 Gbps stateful inspection throughput, 250,000 Concurrent Connections
– Cloud- and Software - based Firewall services, 3DES/ AES, 2 SSL VPN peers
– 6 copper GE ports, 1 copper GE management port, 1 expansion slot
– Cisco Application Visibility and Control (AVC), Cisco Web Security Essentials (WSE)
– Active/ Active, Active/Standby high availability, 100 Vlans
– 8 GB memory, 8 GB flash
Đặc tính kỹ thuật
Stateful Inspection Throughput (Maximum) | 1.2 Gbps |
Stateful Inspection Throughput (Multiprotocol) | 600 Mbps |
IPS Throughput | 400 Mpbs (Extra hardware not required) |
Next-Generation Throughput (Multiprotocol) | 350 Mbps |
3DES/AES VPN Throughput | 250 Mbps |
Users/Nodes | Unlimited |
IPsec VPN Peers | 250 |
Cisco Cloud Web Security Users | 250 |
Premium AnyConnect VPN Peers(Included/Maximum) | 2 / 250 |
Concurrent Connections | 250,000 |
New Connections/Second | 15,000 |
Virtual Interfaces (VLANs) | 100 |
Security Contexts (Included/Maximum) | 2,5 |
High Availability | Active / Active and Active / Standby |
Expansion Slot | 1 interface card |
USB 2.0 Ports | 2 |
Integrated I/O | 6 GE Copper |
Expansion I/O | 6 GE Copper or 6 GE SFP |
Serial Ports | 1 RJ-45 console |
Solid State Drive | 1 slot, 120 GB MLC SED |
Memory | 8 GB |
Minimum System Flash | 8 GB |
System Bus | Multibus architecture |
Temperature | 23 to 104°F (-5 to 40°C) |
Relative Humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 15,000 ft (4572m) |
Shock | 70G, 4.22 m/sec |
Vibration | 0.41 Grms2 (3 to 500 Hz) random input |
Acoustic Noise | 64.2 dBa max |
Temperature | -13 to 158ºF (-25 to 70ºC) |
Relative Humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 15,000 ft (4570m) |
Shock | 70G, 4.22 m/sec |
Vibration | 1.12 Grms2 (3 to 500 Hz) random input |
AC Range Line Voltage | 100 to 240 VAC |
AC Normal Line Voltage | 100 to 240 VAC |
AC Current | 4.85A |
AC Frequency | 50 / 60 Hz |
DC Domestic Line Voltage | -40.5 to 56 VDC (-48 VDC nominal) |
DC International Line Voltage | -55 to -72 VDC (-60 VDC nominal) |
DC Current | 15A (maximum input) |
Steady State | 65W |
Maximum Peak | 70W |
Maximum Heat Dissipation | 239 BTU/hr |
Form Factor | 1 RU, 19-in. rack-mountable |
Safety | IEC 60950-1: 2005, 2nd Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2ndEdition; CSA C22.2 No. 60950-1-07, 2ndEdition |
Electromagnetic Compatibility (EMC) | CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008;FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009; ICES-003 ISSUE 4 FEBRUARY.2004; VCCI: V-3/2011.04; C-TICK: AS/NZS CISPR 22,2009 KC: KN22 & KN24 |
Industry Certifications | In process |
Dimensions (H x W x D) | 4.24 x 42.9 x 39.5 cm |
Weight (with AC Power Supply) | 6.07 kg |
– Bảo hành: 12 tháng
