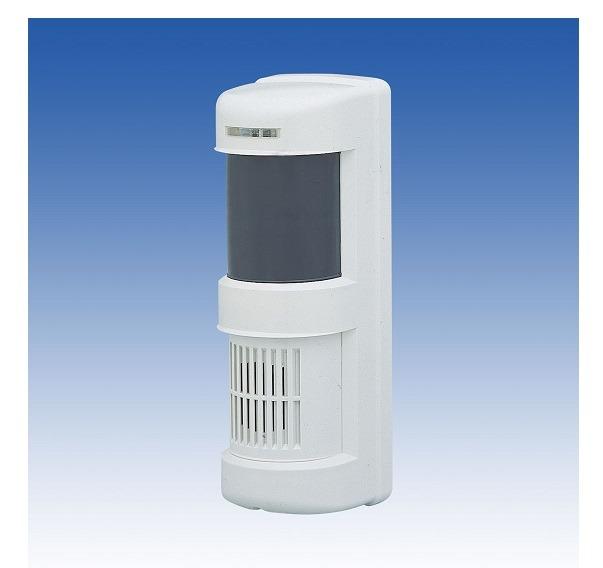

Sensor Speaker TAKEX PVW-12TE
- PVW-12TE is a sensor speaker which detects passive infrared emitted from human beings and sound two different messages depending on the day light or control input settings.
- Suitable for indoor and outdoor use
+ Designed to be rainproof, PVW-12TE can be used outside.
+ It is equipped with AND detection system which will offer more reliable protection.
+ AND detection system will issue an alarm signal only when detection occurs in both horizontal and downward zones simultaneously.
- Two recordable messages / Dual control (daylight or ARM/DISARM settings)
+ The unit can record two different messages (Max. 8sec. each).
+ At detection, it will trigger one of the messages depending on the day light or control input (ARM/DISARM) settings.
+ Day light control: Night:Message 1 , Day:Message 2.
+ External input control: ARM: Message 1, DISARM:Message 2.
- Two recording methods available: Message can be recorded through built-in microphone or jack input which fits to external equipments such as tape recorders or personal computers.
- Replay time adjustable: Replay time of messages is adjustable between 2sec. and 5min.
Specification
| Product name | Sensor speaker (For indoor/outdoor use) |
| Model | PVW-12TE |
| Detection system | Passive infrared |
| Coverage | Horizontal coverage Max. detection distance: 40' (12m) Horizontal detection zone: 7 zones Detection angle: 90degrees Downward detection zone: 7 zones |
| Adjustment range | Horizontal: +/-90degrees(+/-3degrees of fine adjustment is available) Detection distance: 10' to 40' (3 to 12m) (By adjusting vertical angle of downward curtain) |
| Supply voltage | 10 to 30VDC (Non polarity) |
| Current consumption | 55mA MAX. for standby 300mA MAX. for operation (When Max. volume) |
| ARM/DISARM input | N.O./N.C. selectable with a switch N.O.: Armed when closed N.C.: Armed when opened Response time: 300msec or longer Input resistance: 1kΩ; or less |
| Replay input | N.O./N.C. selectable with a switch N.O.: Armed when closed N.C.: Armed when opened Response time: 300msec or longer Input resistance: 1kΩ or less |
| Day light control | Recognized as night when the illuminance of the surrounding area is lower than the set illuminance. |
| Contact output | Dry contact relay output N.O./N.C. selectable with a switch Contact capacity: 30V (AC/DC), 0.5A MAX. Contact operation: One shot operation Approx. 2sec. |
| Sound output | Replay the two different messages through the built-in speaker Operation: off delay operation Repeat sounds during detection time + Approx. 2sec. to 5min. Output sounds: [Message 1] and [Message 2] (Max. 8sec. each) Sound volume adjustment: 80dB Max. Recording method: Built-in microphone or Jack input |
| Operation LED | Red LED Blinks for warming-up - LED can be disabled with a switch. Lights for detection - LED can be disabled with a switch. Fast blinks for recording standby Lights for recording (Max. 8sec.) |
| Tamper output | Dry contact relay output: NC Capacity: 30V (AC/DC), 0.5A MAX. |
| Pulse count settings | Once/Three times (Selectable with a switch) |
| Sensitivity adjustment | 30% to 170% (By potentiometer) |
| Connection | Terminals |
| Ambient temperature | - 4F to + 122F (- 20C to + 50C) |
| Mounting position | Indoor / Outdoor (Rain-proof) |
| Weight | 16.8 oz (480g) |
| Appearance | Body: AES resin Lens: PE resin |
- Bảo hành: 12 tháng.
