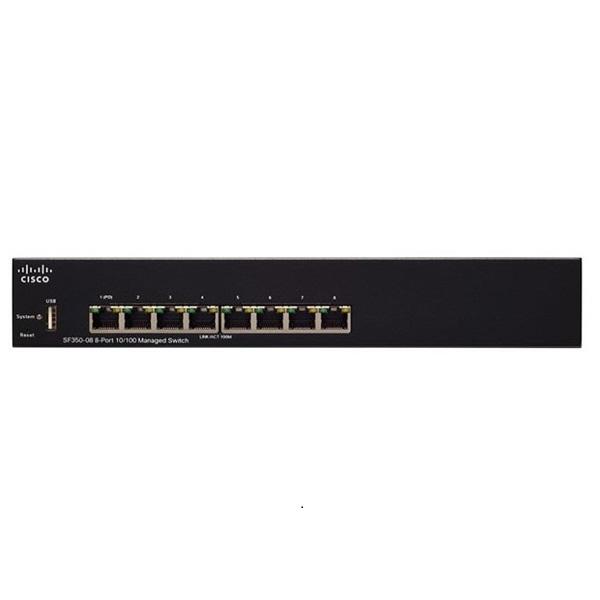

8-port 10/100Mbps Managed Switch CISCO SF350-08-K9-UK
- The Cisco SF350-08 Switch is part of the Cisco Small Business line of network solutions and a portfolio of affordable managed switches that provides a reliable foundation for your business network. This switch delivers the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively.
- Easy to set up and use, it provides the ideal combination of affordability and capabilities for small businesses and helps you create a more efficient, better-connected workforce.
ETHERNET PORT CONFIGURATION
- 8-port 10/100Mbps
CONFIGURATION & CONTROL
- Easy-to-use GUI interface and CLI, FindIT, PnP, Auto Smartports
L2+/L3 FEATURES
- Static routing, VLANs, QoS, Voice/Guest VLAN, GVRP, MSTP, and IGMP Snooping
ADVANCED SECURITY
- 802.1x including DVA, Web-based Authentication, MAB, Private VLAN, IPv6 First Hop Security, IP Source Guard, SCT (CoPP), Storm Control.
Đặc tính kỹ thuật
| Model | SF350-08-K9-UK |
General | |
Device Type | Switch - 8 ports - L3 - managed |
| Enclosure Type | Desktop 1U |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 |
| Performance | Switching capacity: 1.6 Gbps |
| Forwarding performance (64-byte packet size): 1.19 Mpps | |
| Capacity | Active VLANs: 4096 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IPv4 routing, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 3 switching, layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless, 12MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Link/activity |
Expansion / Connectivity | |
Interfaces | 8 x 100Base-TX RJ-45 |
| 1 x console RJ-45 management | |
| 1 x USB management | |
Power | |
Power Device | External power adapter |
| Power Provided | 0.5 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
Cables Included | 1 x power cable |
| 1 x console cable | |
| MTBF | 644,573 hours |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Localization | United Kingdom |
Dimensions & Weight | |
Width | 27.94 cm |
| Depth | 17 cm |
| Height | 4.4 cm |
| Weight | 1.18 kg |
Manufacturer Warranty | |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
- Bảo hành: 12 tháng.
