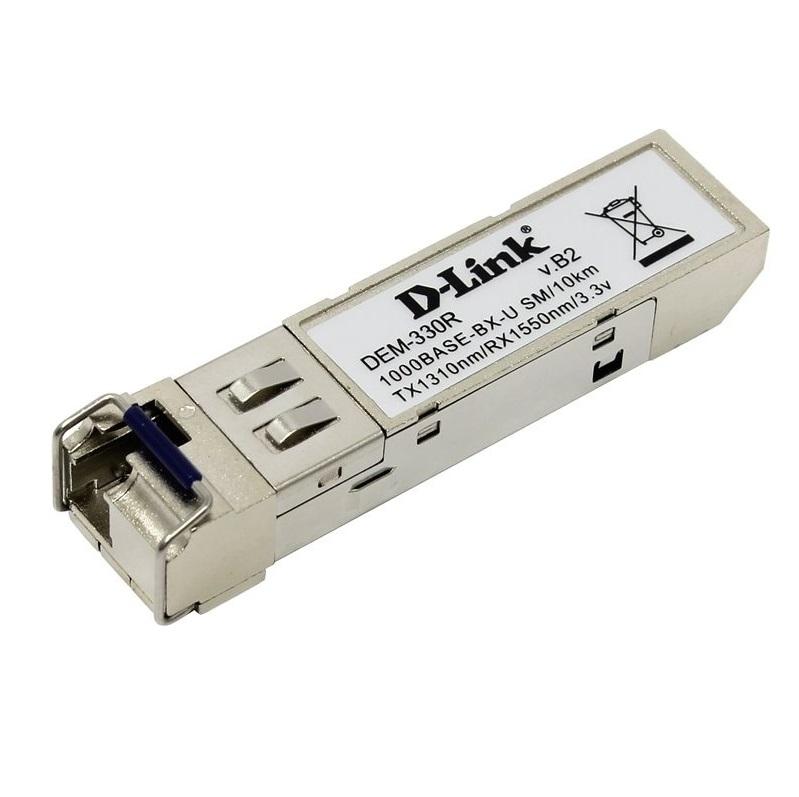

SFP Transceiver 1000Base-BX-U Single-mode D-Link DEM-330R

SFP Transceiver 1000Base-BX-U Single-mode D-Link DEM-330R

  • MS 000011636
  • D-Link
Giá : Liên hệ

SFP Transceiver 1000Base-BX-U Single-mode D-Link DEM-330R

SFP Transceiver 1000Base-BX-U Single-mode D-Link DEM-330R

- 1000Base-BX-U (Simplex LC) Single-mode SFP (Mini-GBIC) Transceiver up to 10km (TX-1310/RX-1550 nm).

- Standard: IEEE802.3z 1000BASE-BX-D.

- Wavelength: Tx: 1550nm, Rx: 1310 nm.

- Connector: Simplex LC.

- Fiber Type: 9/125um Single-mode Fiber.

- Maximum Fiber Cable Length: 10km.

- Transmit Power Range: -3 to -9 dBm.

- Receive Power Range: -1 to -21 dBm.

- Sensitivity: -21 dBm.

- Min. Power Budget: 12 dB.

- Max. Power Budget: 18 dB.

- Power Support: 3.3V.

- Supply Current: 300mA.

- Dimensions: 13.4 mm (W) x 55.5 mm (D) x 11.28 mm (H).

- Weight : 19.8g.

- Bảo hành 36 tháng.
