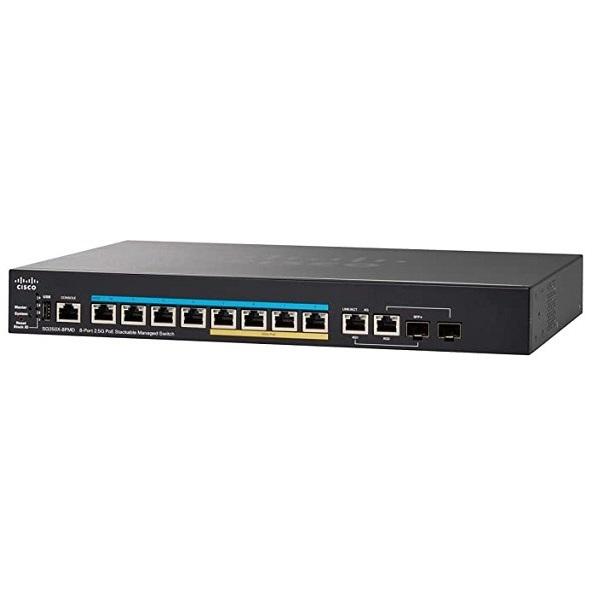

8-Port 100M/1G/2.5G PoE+ + 2-Port 10GBase-T/SFP+ Combo Stackable Managed Switch CISCO SG350X-8PMD-K9-EU
- 8 x 100M/1G/2.5G PoE+ ports (4 support 60W PoE).
- 2x 10G ports (2x 10GBase-T/SFP+ combo).
- 240W PoE power budget.
- Switching capacity: 80Gbps.
- Jumbo frames: Frame sizes up to 9000 bytes. The default MTU is 2000.
- MAC table: 16.000 addresses.
- Hardware stack: Up to four units in a stack. Up to 208 ports managed as a single system with hardware failover.
- Flash: 256 MB.
- CPU: 800-MHz ARM.
- CPU memory: 512 MB.
- Packet buffer: 1.5 MB.
- Power: 100 to 240V 47 to 63 Hz, internal, universal.
- Dimensions (W x H x D): 344.4 x 44 x 252.5 mm.
- Weight: 2.74 kg.
Đặc tính kỹ thuật
| Model | SG350X-8PMD-K9-EU |
| Performance | |
| Capacity in Mpps (64-byte packets) | 29.76 Mpps |
| Switching capacity (Gbps) | 80 Gbps |
| General | |
| Jumbo frames | Frame sizes up to 9000 bytes. The default MTU is 2000 |
| MAC table | 16.000 addresses |
| Stacking | |
| Hardware stack | Up to four units in a stack. Up to 208 ports managed as a single system with hardware failover |
| High availability | Fast stack failover delivers minimal traffic loss. Supports link aggregation across multiple units in a stack |
| Plug-and-play stacking configuration and management | Master and backup for resilient stack control Auto-numbering Hot swap of units in stack Ring and chain stacking options, auto-stacking port speed, flexible stacking port options |
| High-speed stack interconnects | Cost-effective high-speed 10G fiber and copper interfaces. Support LAG as stacking interconnects for even higher bandwidth |
| Hybrid stack | A mix of SG350X, SG350XG, and SX350X switches in the same stack (Gigabit and 10 Gigabit Ethernet) |
| Green (power efficiency) | |
| Energy Detect | Automatically turns power off on RJ-45 port when the switch detects a link down. Active mode is resumed without loss of any packets when the switch detects the link is up |
| Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables |
| EEE compliant (802.3az) | Supports IEEE 802.3az on all 10 Gigabit Ethernet copper ports |
| Disable port LEDs | LEDs can be manually turned off to save energy |
| Hardware | |
| Total system ports | 8x 2.5G + 2x 10G |
| Network ports | 8x 2.5G |
| Uplink ports | 2x 10G copper/SFP+ combo |
| Number of ports that support PoE | 8 (4 support 60W PoE) |
| Power dedicated to PoE | 240W |
| Console port | Cisco standard RJ-45 console port |
| USB slot | USB Type A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | UTP Category 5 or better; fiber options (Single-Mode Fiber [SMF] and Multimode Fiber [MMF]); coaxial SFP+ |
| LEDs | System, master, stack ID, link/speed per port |
| Flash | 256 MB |
| CPU | 800-MHz ARM |
| CPU memory | 512 MB |
| Packet buffer | 1.5 MB |
| Power consumption (worst case) | |
| Green power (mode) | EEE, Energy Detect, Short Reach |
| System power consumption | 110V=48.4W 220V=50.5W |
| Power consumption (with PoE) | 110V=312.4W 220V=307.3W |
| Heat dissipation (BTU/hr) | 1065.9 |
| Environmental | |
| Unit dimensions (W x H x D) | 344.4 x 44 x 252.5 mm |
| Unit weight | 2.74 kg |
| Power | 100 to 240V 47 to 63 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 32° to 113°F (0° to 45°C) |
| Storage temperature | -4° to 158°F (-20° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failures (MTBF) | |
| Fan (number) | 1 |
| Acoustic noise | 25°C: 41.3 dB 45°C: 42.9 dB |
| MTBF at 50°C (122°F) (hours) | 474,265 |
- Bảo hành: 12 tháng.
