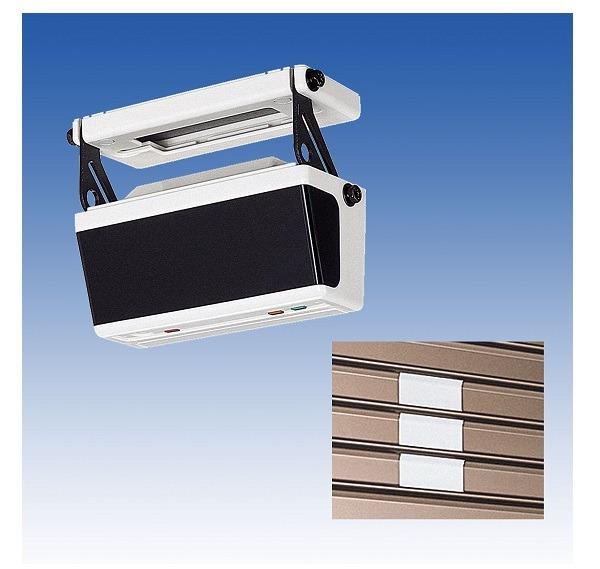

Shutter Sensor TAKEX PR-S3
- Double beam.
- Built-in operation LED output point.
- Built-in attenuation LED.
Specification
| Detection system | Near infrared (reflection type) |
| Alarm output | Dry contact relay output: 1c Response time: 1 to 2sec 30V (AC/DC) 0.5A Max |
| Supply voltage | 10 to 30V DC (non-polarity) |
| Power consumption | 30mA |
| Features | LED lights up |
| Ambient temperature | -20C to +50C |
| Mounting position | Shutter case, lintel (indoor) |
| Optional | Sensor bracket, sheet bracket |
| External dimensions | W97.5mm × H50mm × D40mm |
| Weight | 115g |
- Bảo hành: 12 tháng.
