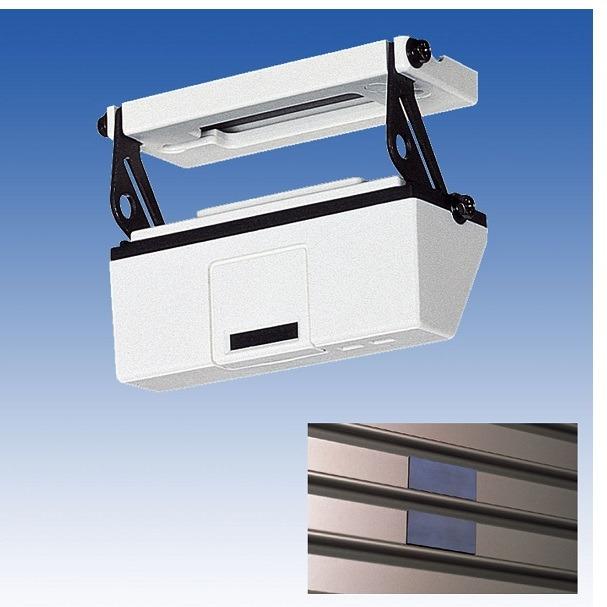

Shutter Sensor TAKEX SH-M5
- Magnetic type 3 to 12cm.
- Detection system: Magnetic modulation.
- Alarm output:
+ Dry contact relay output: 1c.
+ Response time: 1 to 2sec.
+ 30V (DC) 0.5A Max.
- Supply voltage: 10 to 30V.
- Power consumption: 38mA.
- Ambient temperature: −20°C to +50°C.
- Mounting position: Shutter (indoor).
- Optional: Sensor bracket, sheet bracket.
- External dimensions: W92mm × H74mm × D36mm.
- Weight: 95g.
- Bảo hành: 12 tháng.
