| Number of Cards | 1,200 cards |
| Built-in Reader | Built-in SYRIS 125KHz Reader ,One External Reader |
| Transmit Frequency | 125KHz |
| Read Range | 5cm ~ 15cm |
| Output Points | 1 Relay |
| Input Ponits | 2 NV Input |
| Communication | RS232-TTL |
| Keypad / LED Indicator | 17 keys / 4 LED |
| Buad Rate | 19,200bps (4,800bps ~ 115,200bps) |
| Anti-Tamper Facility | Built-in |
| Beep Tone | Built-in Buzzer |
| Operating / Storage Temperature | -20˚C ~ +70˚C / -30˚C ~ +80˚C |
| Input Voltage | 8V ~ 15V DC |
| Dimensions(mm) | 83W x 121H x 32D |

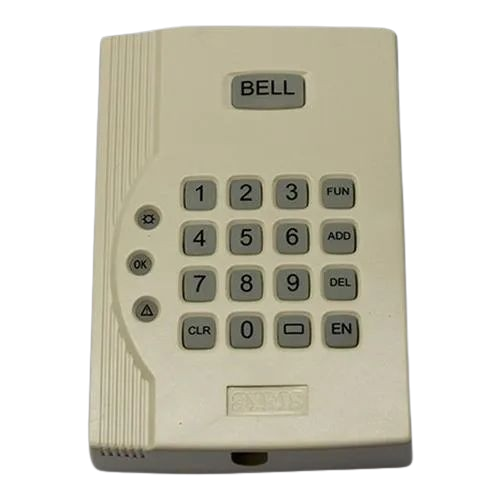

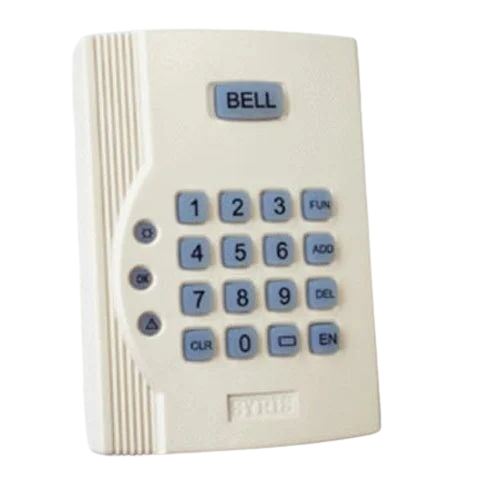

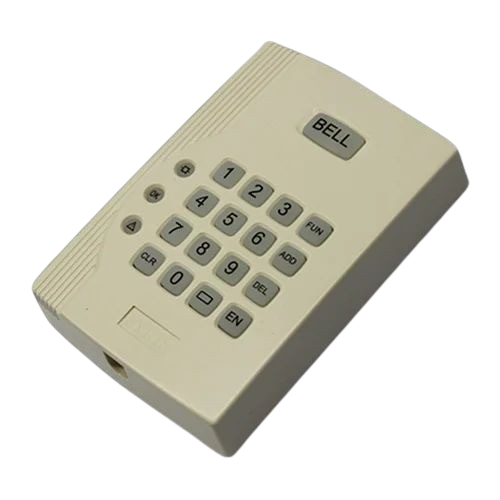

| Ordering Information | •SY110SA: Single Door Controller |
Bình luận
Bộ điều khiển cửa Syris SY230NT-SV4
Giá : Liên hệ
• Stand alone or Networking system.
• Built-in Anti-Tamper protection / Buzzer.
• Use LCD display reader can show card holder name. (English: 12 Char word or Chinese:6 Char word)
• Advanced programmable functions for different level within groups to maximize management control.
• Support multiple proximity, keypad, biometrics, smart card and RS485 / wiegand reader.
• Versatile software features support wide range functions.
• Capability of connecting external backup power supply for emergency.
• Can be off-line use or on-line use.
• Externally programmable interface.
