| Number of Cards | 2,000 cards |
| Capacity of Records | 2,000 records |
| Built-in Reader | Built-in SYRIS 125KHz Reader, One External Reader. |
| Transmit Frequency | 125KHz / 13.56MHz |
| Relay Output | 1 relay, 1 voltage output |
| Input Points | 4 NV input |
| Read Range | 5cm ~ 15cm |
| Communication | RS485 |
| Buad Rate | 19,200bps (4,800bps ~ 115,200bps) |
| Group and APPSet / Holidays | 4 Groups / 30 Holidays |
| Timer / Controller ID | 1 Timer / 001-999 |
| Support Software | SYBASE |
| Extension Modules | Support MD120EXT-1S DIDO module (Di x 2, Do x 1) |
| Keypad / LED Indicator | 17 keys / 4 LED |
| Anti-Tamper Facility | Built-in |
| Beep Tone | Built-in Buzzer |
| Operating / Storage Temperature | -20˚C ~ +70˚C / -30˚C ~ +80˚C |
| Input Voltage / Consumption | 8V ~ 15V DC |
| Dimensions(mm) | 83W x 121H x 32D |

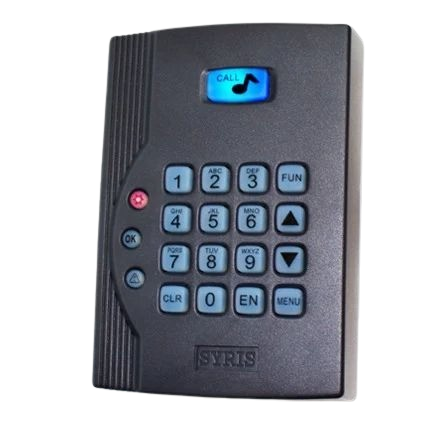

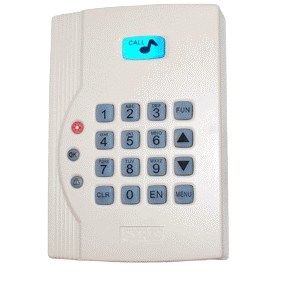

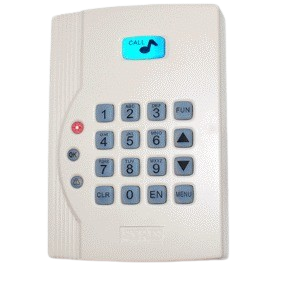

| Ordering Information | •SY120SA: Single Door Controller |
