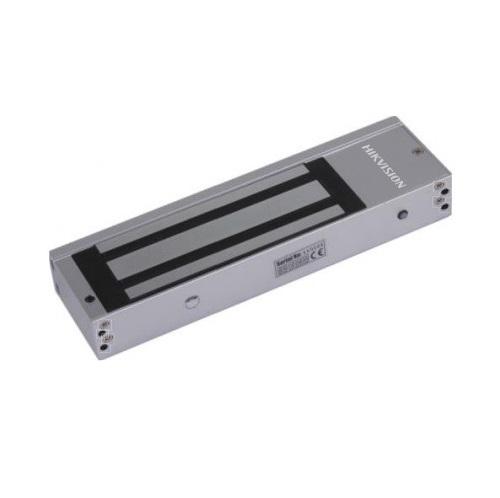

Single-door Magnetic Lock HIKVISION DS-K4H450S
- The DS-K4H450S single-door magnetic lock is designed for wooden door, glass door, metal door, and fireproof door. The maximum thrust of the lock is 500 kg. It can be used for controlling door opening/closing, and the indicator shows the door status. It supports signal output of door lock output status testing.
Main Features
- The magnetic lock supports static linear thrust of 500kg.
- The power supply can be 12VDC or 24VDC + 10%.
- Applies to wooden door, glass door, metal door and fireproof door.
- LED indicator displays the status of door lock.
- Signal output of door lock status.
Specifications
| Model | DS-K4H450S |
| Dimension of Lock Body (L× W × H) | 265 mm × 71.8 mm × 38.8 mm |
| Dimension of Armature Plate (L × W × H) | 185 mm × 60 mm × 13 mm |
| Maximum Thrust | 500 kg (1200 Lbs) |
| Input Voltage | 12/24 VDC + 10% |
| Working Current | 12 V/420 mA 24 V/210 mA |
| Signal Output | Dry Contact Signal Output; Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking |
| LED Indicator | Green (Locked) Red (Unlocked) |
| Suitable Door | Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Weight | 4.5 kg |
