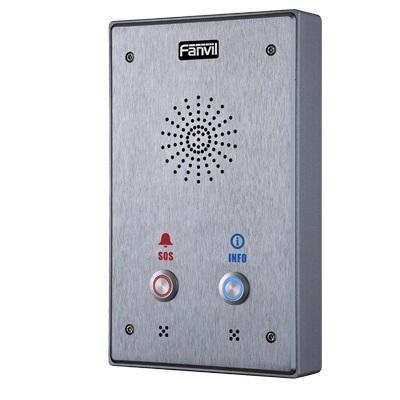

SIP Audio Intercom Fanvil i12-02P
- Hỗ trợ 2 nút ấn, bảo mật thông minh chống giả mạo.
- Hỗ trợ 2 tài khoản SIP.
- Sử dụng công nghệ tiên tiến, giảm tiếng ồn, âm thanh băng rộng, phong phú thông qua loa 2W.
- Tiêu chuẩn chống bụi và nước: IP65.
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 10~14V/1.5A DC or PoE.
Đặc tính kỹ thuật
| Model | FANVIL i12-02P |
| Generic | - 2 SIP lines - Full-duplex speaker phone (HF) - Intelligent DSS Keys(Speed dial) - Wall-mount installation - 2 embedded short circuit input interfaces - 2 embedded short circuit output interfaces. Support 4 controlled events: remote DTMF; remote server’s commands; interaction with short circuit input; talking status - Output interface for active speaker - Audio record output interface - External Power Supply - Multicast - All in ONE: Radio and intercom, intelligent security function - Industrial Standard Certifications: IP65, IK10, CE/FCC |
| Call Features | - Intercom - Speed Dial - Auto-Answering (per line) - Voice Message (on server) - Local 3-way Conference |
| Intercom Function | - Call log (900 entries, in/out/missed) - Programmable DSS/Soft keys - Network Time Synchronization - Action URL / Active URI |
| Audio | - Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB - Wideband Codec: G.722 - Full-duplex Acoustic Echo Canceller (AEC)-Hands-free mode, 96ms tail-length - Voice Activity Detection (VAD)/ Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) - Packet Loss Concealment (PLC) - Dynamic Adaptive Jitter Buffer up to 300ms - DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833)/ SIP INFO - Omnidirectional pickup: the pickup distance is up to 5 meters |
| Networking | - Physical: 10/100 Mbps Ethernet - IP Configuration: Static / DHCP / PPPoE - Network Access Control: 802.1x - VPN: L2TP (Basic Unencrypted) / OpenVPN - VLAN - QoS |
| Protocols | - SIP2.0 over UDP/TCP/TLS - RTP/RTCP/SRTP - STUN - DHCP - LLDP - PPPoE - 802.1x - L2TP - OpenVPN - SNTP - FTP/TFTP - HTTP/HTTPS - TR-069 |
| Deployment & Maintenance | - Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 - Web Management Portal - Web-based Packet Dump - Configuration Export / Import - Firmware Upgrade - Syslog |
| Physical Specifications | - 2 DSS keys (Speed Dial) - RJ45 Ethernet Jacket x2: Network x1, PC x1 (Bridged to Network) - Main Chipset: Broadcom - Passive Switch: Normally Open and Normally Closed highest at 30V/1A AC/DC - Output interface for active speaker - Audio record output interface - 2 embedded short circuit input interfaces - 2 embedded short circuit output interfaces - Speaker: 3W/4Ω - Cables: CAT5 or better - Power Supply: 10~14V/1.5A DC or PoE - Shell Material: Front plate, aluminum alloy. Back plate, Cast aluminum - Protection level: IP65 and IK10 - Working Temperature: -40~70°C - Storage Temperature: -40~70°C - Working Humidity: 10~90% - Overall Dimension: 195x120x39mm (W x H x L) - Package Dimensions: 260x165x62mm (W x H x L) - Package Weight: 0.85kg |
- Bảo hành: 24 tháng.
