Bộ thu RF 1 kênh, 11 ~ 24 VAC / VDC, 433,92MHz, Ngõ ra rơ le

Bộ thu RF 1 kênh, 11 ~ 24 VAC / VDC, 433,92MHz, Ngõ ra rơ le

  • MS 0015518
  • SECO-LARM
Giá : Liên hệ

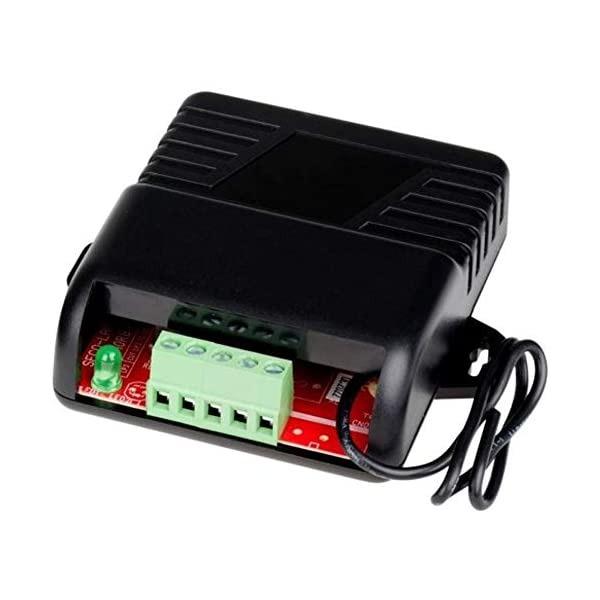

1-Channel RF Receiver, 11~24 VAC/VDC, 433.92MHz, Relay Output

TypeWIRELESS - Single-Channel RF Receiver
Operating voltage11~24 VAC/VDC
RangeUp to 500' (150m) with SECO-LARM transmitter. Range will vary.
Relay RatingForm C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel
Current Draw8mA@12VDC (standby), 30mA/channel @12VDC (activated)
Extended Range Antenna CompatibleYes (SK-91ERSD)
Connectors5 Quick-connect screw terminals (+, -, with NO/NC/COM)
Dimensions3-1/8" x 2-9/16" x 1" (80 x 65 x 25 mm)
