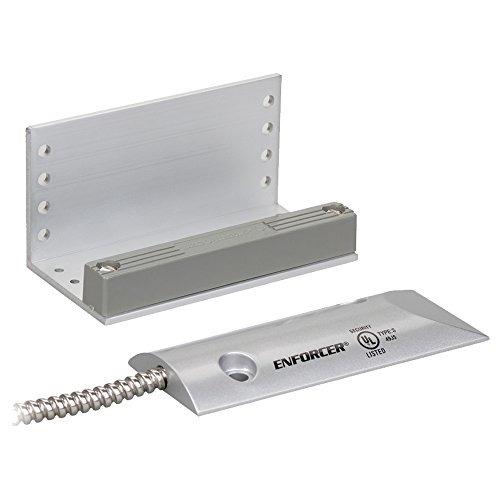

Công tắc cửa cuốn có dây SM-226L-3Q
| IP Rating | IP66 - Epoxy sealed |
| Operating Voltage | 12~24 VDC |
| Loop Type | Open/Closed loop |
| Electrical Configuration | SPDT |
| Operation Gap | 2-3/4", (70mm) |
| Material - Magnet | ABS plastic on L-bracket |
| Material - Switch | Heavy-duty cast-aluminum case |
| Material - Terminals | 24" (61cm) armored leads |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 0.2A@10VDC (max), 3W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 4-5/16″x1-3/4″x7/16″ (110x44x11mm) |
| Magnet Dimensions | 3-15/16″x2″x2″ (100x51x51mm) |
| Magnet Type | Alnico 5 |
