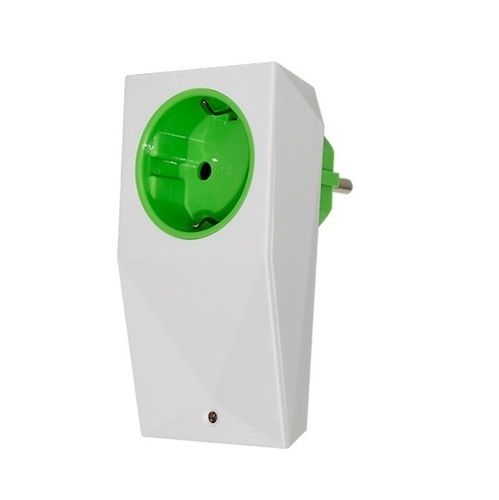

Smart Socket Air Type F LOXONE (100115)
Part Number: 100115
- The Loxone Smart Socket Air is a wireless switchable outlet that can measure temperature, power and energy.
- The Smart Socket Air is the first switchable socket with Loxone Air technology.
o integrated temperature sensor
o enables performance and energy measurement
o perfect for renovators and renovators
o based on Loxone Air radio technology
Thông số kỹ thuật
| Power supply | 110 ~ 230VAC, 50/60Hz |
| Power consumption | max. 500mW |
| Power loss at max. load | 2.3W |
| Output | protective contact socket outlet (single-pole switched with internal relay, bistable) total load max. 13A |
| Interfaces | Loxone Air: 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna |
| Ambient temperature | -20 ~ 35°C |
| Humidity | max. 95% r.H. (non condensing) |
| Temperature detection range | -40 ~ 125°C |
| Power detection range | 0 ~ 4kW |
| Energy detection range | 0 ~ ∞ kW/h |
| Learn button | can also be used as a push button |
| Colours | Green: RAL6018 White: RAL9003 |
| Finish | Matte |
| Weight | 114g |
| Dimensions (LxWxH) | 106 x 53.8 x 29.5 mm |
- Bảo hành: 24 tháng.
