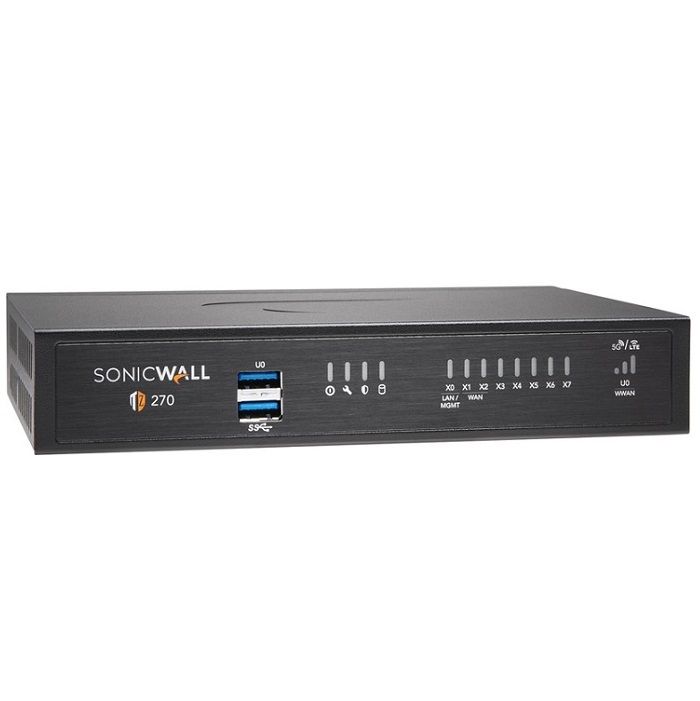

Thiết bị tường lửa SonicWall TZ270 High Availability (02-SSC-6447)
- SonicWall TZ270 High Availability Appliance.
- High Availability (HA) allows two identical SonicWall appliances running SonicOS to be configured to provide a reliable, continuous connection. One SonicWALL device is configured as the Primary unit, and an identical SonicWall device is configured as the Secondary unit. If the Primary SonicWall fails, the Secondary SonicWall takes over to secure a reliable connection between the protected network and the Internet. Two appliances configured in this way function as a High Availability Pair.
*) This HA version requires an existing TZ270 to be paired to, you cannot use a HA appliance on its own.
Thông số kỹ thuật
| Model | TZ270 |
| Operating system | SonicOS 7.0 |
| Interfaces | 8x1GbE, 2 USB 3.0, 1 Console |
| Storage expansion slot (Bottom) | Optional up to 256GB |
| Management | Network Security Manager, CLI, SSH, Web UI, GMS, REST APIs |
| Single Sign-On (SSO) Users | 1,000 |
| VLAN interfaces | 64 |
| Access points supported (maximum) | 16 |
| FIREWALL/VPN PERFORMANCE | |
| Firewall inspection throughput1 | 2 Gbps |
| Threat prevention throughput2 | 750 Mbps |
| Application inspection throughput2 | 1 Gbps |
| IPS throughput2 | 1 Gbps |
| Anti-malware inspection throughput2 | 750 Mbps |
| TLS/SSL inspection and decryption throughput (DPI SSL)2 | 300 Mbps |
| IPSec VPN throughput3 | 750 Mbps |
| Connections per second | 6,000 |
| Maximum connections (SPI) | 750,000 |
| Maximum connections (DPI) | 150,000 |
| Maximum connections (DPI SSL) | 25,000 |
| VPN | |
| Site-to-site VPN tunnels | 50 |
| IPSec VPN clients (maximum) | 5 (200) |
| SSL VPN licenses (maximum) | 1 (50) |
| Encryption/authentication | DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography |
| Key exchange | Diffie Hellman Groups 1, 2, 5, 14v |
| Route-based VPN | RIP, OSPF, BGP |
| Certificate support | Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to SonicWall VPN, SCEP |
| VPN features | Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN |
| Global VPN client platforms supported | Microsoft® Windows 10 |
| NetExtender | Microsoft® Windows 10, Linux |
| Mobile Connect | Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10 |
| SECURITY SERVICES | |
| Deep Packet Inspection services | Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL |
| Content Filtering Service (CFS) | HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists |
| Comprehensive Anti-Spam Service | Yes |
| Application Visualization | Yes |
| Application Control | Yes |
| Capture Advanced Threat Protection | Yes |
- Bảo hành: 12 tháng.
