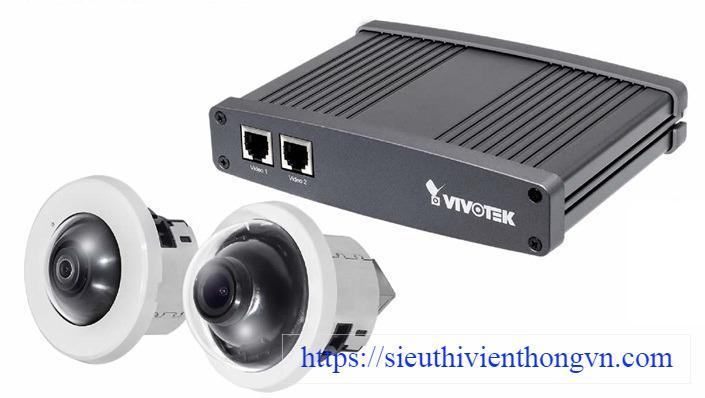

Split-Type Camera System Vivotek VC8201-M11 (8m)
- Split-type camera system VC8201-M11 includes 1-video core and 2-camera CU8131.
- Recessed Mount Camera Units.
- Built-in Microphone on Camera Units
- Maximum Cable Connection: 8m.
- Real-time Compression: H.264 and MJPEG.
- 3D Noise Reduction.
- Power input: 12V DC/ PoE802.3af.
Specifications
| Model | VC8201-M11 (CU8131 x 2) |
| Camera Features | |
| Image Sensor | 1/3 inch Progressive CMOS |
| Maximum Resolution | 30 fps @ 1280x800 |
| Focal Length | f=3.6mm |
| Aperture | F1.8 |
| Field of View | 86° (H); 51° (V); 103° (D) |
| Shutter Time | 1/5s ~1/32,000s |
| WDR Technology | WDR Pro |
| Minimum Illumination | 1.05 Lux @ F1.8, 50 IRE (Color) |
| Tilt Range | 70° |
| Pan/ Tilt/ Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264 & MJPEG |
| Video Source | Up to 2 VIVOTEK camera units |
| Maximum Streams | 3 simultaneous streams per camera unit |
| Dynamic Range | 110 dB |
| Video Streaming | Adjustable resolution, quality and bitrate; Configurable video cropping for bandwidth saving |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D Noise Reduction |
| Audio | |
| Audio Capability | Audio input |
| Compression | G.711, GSM-AMR |
| Network | |
| User | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ45) |
| General | |
| Power Input | 12V DC/ PoE802.3af |
| Power Consumption | Max. 9.3 W (12VDC) Max. 10.8 W (PoE) |
| Dimensions | Ø 145 x 105 x 32 mm |
| Weight | Net: 360 g (VC8201) |
- Sản xuất tại Taiwan.
- Bảo hành 24 tháng.
