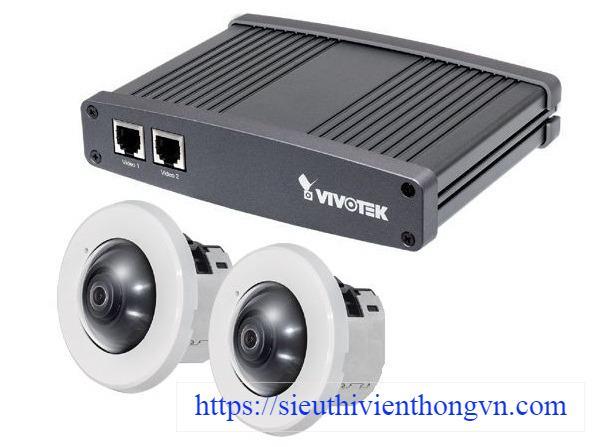

Split-Type Camera System Vivotek VC8201-M33 (5m)
- Split-type camera system VC8201-M33 includes one VC8201 Video Core and two CU8171 Camera Units.
- Recessed Mount camera units.
- Built-in microphone on camera units.
- Maximum cable connection: 5m.
- Real-time Compression: H.264 and MJPEG.
- 3D Noise Reduction.
- Power input: 12VDC/ PoE802.3af.
Specifications
| Model | VC8201-M33 (CU8171 x 2) |
| Camera Features | |
| Image Sensor | 1/2.5 inch Progressive CMOS |
| Maximum Resolution | 15 fps @ 1696 x 1696 |
| Focal Length | f=1.27mm |
| Aperture | F2.0 |
| Field of View | 180° (H); 180° (V); 180° (D) |
| Shutter Time | 1/5s ~1/32,000s |
| WDR Technology | WDR enhanced |
| Minimum Illumination | 0.66Lux@ F2.0, 50 IRE (Color) |
| Pan/ Tilt/ Zoom | 12x digital zoom |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264 & MJPEG |
| Video Source | Up to 2 VIVOTEK camera units |
| Maximum Streams | 3 simultaneous streams per camera unit |
| Video Streaming | Adjustable resolution, quality and bitrate; Configurable video cropping for bandwidth saving |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D Noise Reduction |
| Audio | |
| Audio Capability | Audio input |
| Compression | G.711, GSM-AMR |
| Network | |
| User | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ45) |
| General | |
| Connectors | RJ-45 connector for Network/PoE connection RJ-12 connector for camera unit connection *2 DC 12V power input Digital input *2 Digital output *2 |
| Power Input | 12V DC/ PoE802.3af |
| Power Consumption | Max. 9.3 W (12VDC) Max. 10.8 W (PoE) |
- Sản xuất tại Taiwan.
- Bảo hành 24 tháng.
