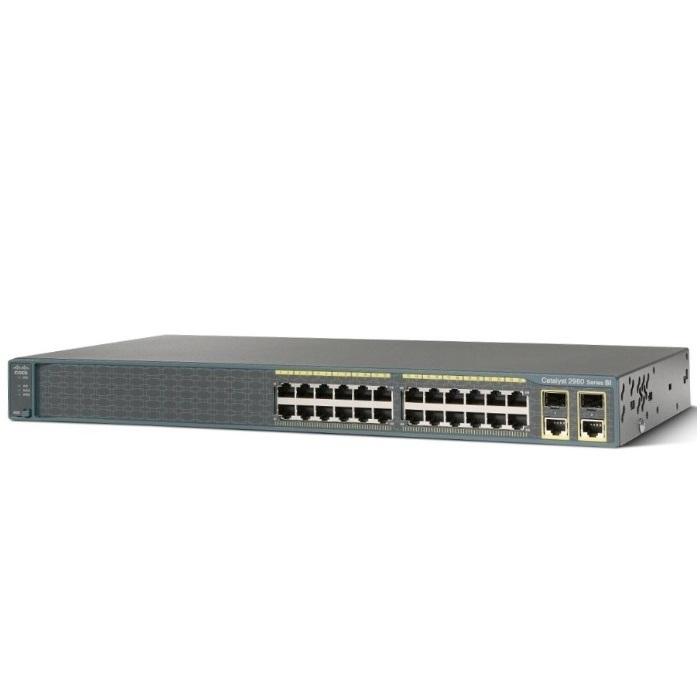

Switch CISCO Catalyst 2960-Plus WS-C2960+24PC-L
- Catalyst 2960 Plus 24-port 10/100 PoE + 2-port T/SFP LAN Base.
- Maximum Number of PoE (IEEE 802.3af) Ports: 24 ports up to 15.4W.
- Available PoE Power: 370W
- Flash memory: 64 MB.
- DRAM: 128 MB.
- Dimensions (H x W x D): 4.4 x 45.0 x 33.2 cm.
- Weight: 5.4 Kilograms.
Specification
| Cisco Catalyst 2960-Plus Series Configurations | |
| 10/100 Ethernet Interfaces | 24 |
| Uplink Interfaces | 2 (SFP or 1000BASE-T) |
| Cisco IOS Software Feature Set | LAN Base |
| Available PoE Power | 370W |
| Switch PoE Power Capacity | |
| Maximum Number of PoE (IEEE 802.3af) Ports | 24 ports up to 15.4W |
| Available PoE Power | 370W |
| Cisco Catalyst 2960-Plus Series Hardware | |
| Flash memory | 64 MB |
| DRAM | 128 MB |
| Performance and Scalability | |
| Forwarding bandwidth | 16 Gbps |
| Maximum active VLANs | 255 |
| VLAN IDs available | 4K |
| Maximum transmission unit (MTU) - L3 packet | 9000 bytes |
| Jumbo frame - Ethernet frame | 9018 bytes |
| Forwarding Performance | |
| Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second | 6.5 |
| Mechanical and Environmental Specifications | |
| Dimensions (H x W x D) | 4.4 x 45.0 x 33.2 cm |
| Weight | 5.4 Kilograms |
| Predicted Reliability | 382 MTBF in thousands of hours |
- Bảo hành: 12 tháng.
