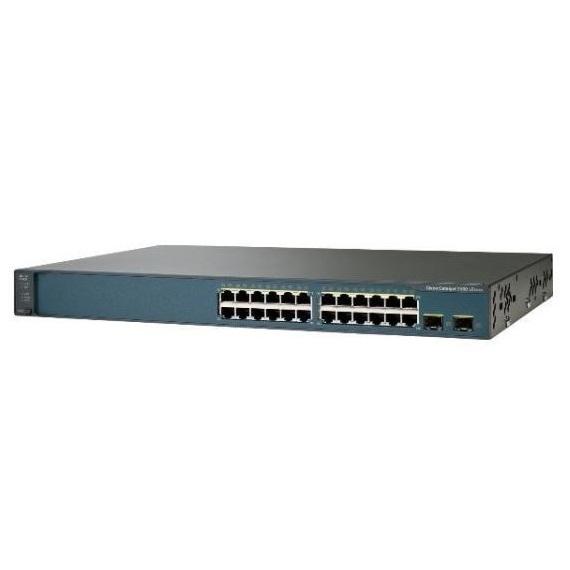

Switch CISCO Catalyst 3560 WS-C3560V2-24PS-E
Cisco Catalyst 3560V2 Series switch WS-C3560V2-24PS-E is the next-generation energy-efficient Layer 3 fast Ethernet switches. This 3560V2 switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560V2 Series switch consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.
– 24 Ethernet 10/100 ports and 2 SFP-based Gigabit Ethernet ports
– 370W available for PoE, allowing 15.4W to all ports
– 1RU fixed-configuration, multilayer switch
– IPv6
– IP Services software feature set
Đặc tính kỹ thuật
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | WS-C3560V2-24PS-E |
Product Type | Switch - 24 ports - L3 - Managed |
Form Factor | Rack mountable - 1U |
Switch Ports | 24 x 10/100 + 2 x SFP |
Power Over Ethernet (PoE) | Yes |
MAC Address Table Size | 12K entries |
Routing Protocol | OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, static IP routing, PIM-DM, policy-based routing (PBR) |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 |
Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, event log, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Flash Memory | 32 MB Flash |
LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, status |
Connectivity Slots | |
Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 - PoE |
1 x console - RJ-45 - management | |
2 x SFP (mini-GBIC) | |
MTBF | 275,360 hour(s) |
Compliant Standards | CE, FCC Class A certified, CISPR 22 Class A, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CSA 22.2 No. 60950, EMC, FCC Part 15, UL 60950-1, IEC 60950-1 |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Operational | 435 Watt |
Features | Redundant Power System (RPS) connector |
Width | 44.3 x 29.5 x 4.4 cm |
Weight | 4.6 kg |
– Bảo hành: 1 năm
