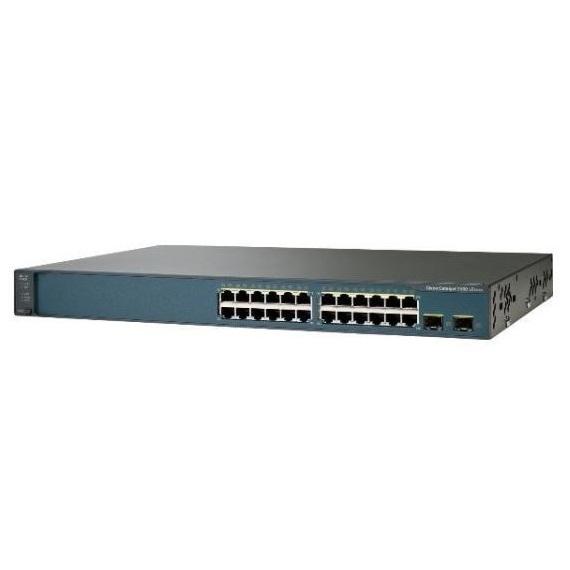

Switch CISCO Catalyst 3560 WS-C3560V2-24TS-SD
Cisco Catalyst 3560 V2 Series switch WS-C3560V2-24TS-SD is the next-generation energy-efficient Layer 3 fast Ethernet switches. This 3560V2 switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560V2 Series switch consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.
– 24 Ethernet 10/100 ports and 2 SFP-based Gigabit Ethernet ports
– 1RU fixed-configuration, multilayer switch
– IPv6
– IP Base software feature set
– DC power supply
Đặc tính kỹ thuật
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | WS-C3560V2-24TS-SD |
Product Type | Switch - 24 ports - L3 - Managed |
Form Factor | Rack mountable - 1U |
Switch Ports | 24 x 10/100 + 2 x SFP |
MAC Address Table Size | 12K entries |
Routing Protocol | RIP-1, RIP-2, static IP routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Flash Memory | 32 MB Flash |
Connectivity Slots | |
Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 |
1 x console - RJ-45 - management | |
2 x SFP (mini-GBIC) | |
Power Supply | |
Power Device | Power supply - internal |
Compliant Standards | CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
Voltage Required | 36 -72 VDC |
Power Consumption Operational | 60 Watt |
Features | Redundant Power System (RPS) connector |
MTBF | 451,606 hour(s) |
Dimensions | 44.3 x 29.5 x 4.4 cm |
Weight | 3.7 kg |
– Bảo hành: 1 năm
