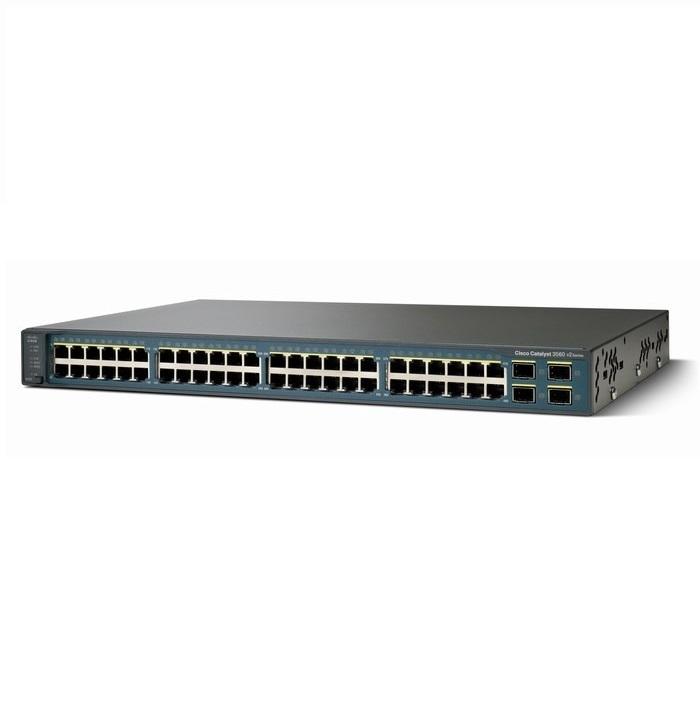

Switch CISCO Catalyst 3560 WS-C3560V2-48TS-E

Switch CISCO Catalyst 3560 WS-C3560V2-48TS-E

  • MS 000012918
  • CISCO
Giá : Liên hệ

Switch CISCO Catalyst 3560 WS-C3560V2-48TS-E

Switch CISCO Catalyst 3560 WS-C3560V2-48TS-E

Cisco Catalyst 3560 V2 Series switch WS-C3560V2-48TS-E is the next-generation energy-efficient Layer 3 fast Ethernet switches. This 3560V2 switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560V2 Series switch consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.

–       48 Ethernet 10/100 ports and 4 SFP-based Gigabit Ethernet ports

–       1RU fixed-configuration, multilayer switch

–       IPv6

–       IP Services software feature set

Đặc tính kỹ thuật

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3560V2-48TS-E

Product Type

Switch - 48 ports - L3 - Managed

Form Factor

Rack mountable - 1U

Switch Ports

48 x 10/100 + 4 x SFP

MAC Address Table Size

12K entries

Routing Protocol

OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, DVMRP, PIM-SM, static IP routing, PIM-DM

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c

Authentication Method

Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Flash Memory

32 MB Flash

Connectivity Slots

Interfaces

48 x 10Base-T/100Base-TX - RJ-45

1 x console - RJ-45 - management

4 x SFP (mini-GBIC)

Power Supply

Power Device

Power supply - internal

MTBF

301,886 hour(s)

Compliant Standards

CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A

Voltage Required

AC 120/230 V ( 50/60 Hz )

Features

Redundant Power System (RPS) connector

Dimensions

44.3 x 29.5 x 4.4 cm

Weight

4 kg

–       Bảo hành: 1 năm
