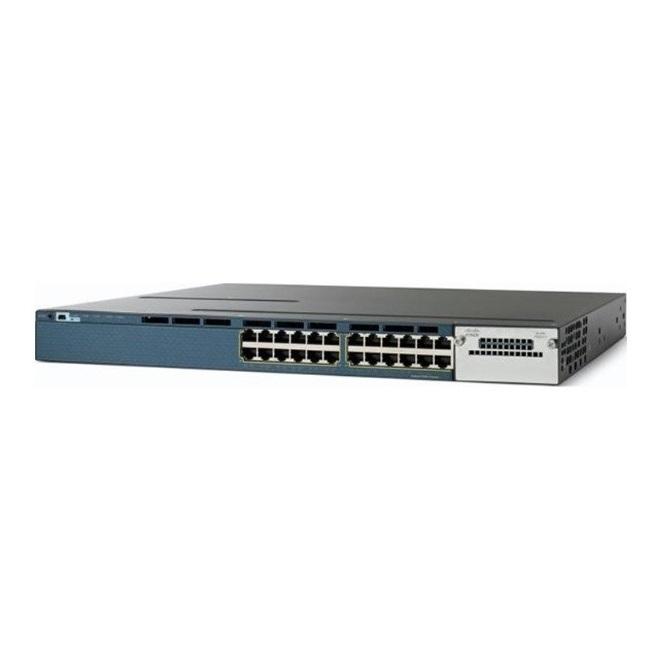

Switch CISCO Catalyst 3560 WS-C3560X-24T-L
Cisco Catalyst 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. Cisco 3560X Switches provide high availability, scalability, security, energy efficiency, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3560-X switches enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
– 24 10/100/1000 Ethernet ports
– Four optional uplink network modules with GE or 10 GE ports
– Dual redundant, modular power supplies and fans
– Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
– USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Đặc tính kỹ thuật
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | WS-C3560X-24T-L |
Product Type | Switch - 24 ports - Managed |
Form Factor | Rack mountable - 1U |
Switch Ports | 24 x 10/100/1000 Ethernet Ports Ethernet Ports |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
Features | Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
DRAM Memory | 256 MB |
Flash Memory | 128 MB Flash |
Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
Connectivity Slots | |
Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
USB: 1 x 4 PIN USB Type A | |
USB: 1 x mini-USB Type B | |
1 x RS-232 - RJ-45 - management | |
1 x 10Base-T/100Base-TX - RJ-45 - management | |
Expansion Slot (s) | 1 (total) / 1 (free) x Expansion Slot |
Power Supply | |
Power Device | Power supply - redundant - plug-in module |
Installed Qty | 1 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Rack Mounting Kit | Optional |
MTBF | 208,218 hour(s) |
Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Features | Redundant Power System (RPS) connector |
Dimensions | 44.5 x 46 x 4.5 cm |
Weight | 7 kg |
– Bảo hành: 1 năm
