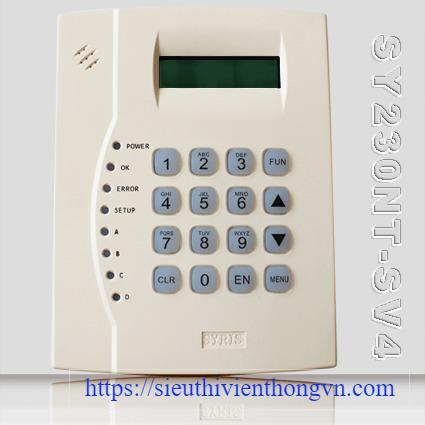

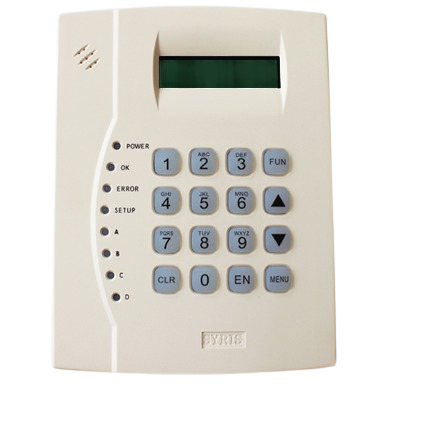

Bộ điều khiển cửa Syris SY230NT-SV4
Feature:
• Stand alone or Networking system.
• Built-in Anti-Tamper protection / Buzzer.
• Use LCD display reader can show card holder name. (English: 12 Char word or Chinese:6 Char word)
• Advanced programmable functions for different level within groups to maximize management control.
• Support multiple proximity, keypad, biometrics, smart card and RS485 / wiegand reader.
• Versatile software features support wide range functions.
• Capability of connecting external backup power supply for emergency.
• Can be off-line use or on-line use.
• Externally programmable interface.
Specification:
| Number of Cards | 9,999 cards |
| Capacity of Records | 4,100 records |
| Number of Readers | 4 ( 2 In / 2 Out ) / 8 ( 4 In / 4 Out ) |
| Door Control | 2 Door / 4 Door |
| Relay Output | 2/4 Relays |
| Input Points | Normally 4 / 8 (DI 5~ DI 8 shared with W3~ W4, expandable to 128) |
| Communication | RS485 x 2 , Wiegand x 2/4 |
| Wiegand Input Points | 2/4 (compatible with 26/32/34/35/37/42/50/66 bits) |
| Buad Rate | 19,200bps (4,800bps ~ 115,200bps) |
| Timer / Time zone | 32 timer / 60 time zone |
| Group and APP Set / Holidays | 64 groups / 366 holidays |
| Controller ID | 01~99 / 0001-9999 |
| Beep Tone | Built-in Buzzer (Max 0.5W) |
| Anti-passback | Up to 3 level of local control or group Anti-passback |
| Keypad | 16 keys |
| LED Indicator | 8 LED |
| LCD Display | 16 x 2 character |
| Input Voltage / Consumption | 8V ~ 24V DC / 0.5W ~ 2.5W |
| Operating / Storage Temperature | -20˚C ~ +70˚C / -40˚C ~ +80˚C |
| Dimensions(mm) | 137W x 180H x 54D |
| Ordering Information | •SY230NT2-SV4 : 2 Door Controller(LCM case)-V4 •SY230NT4-SV4 : 4 Door Controller(LCM case)-V4 |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
