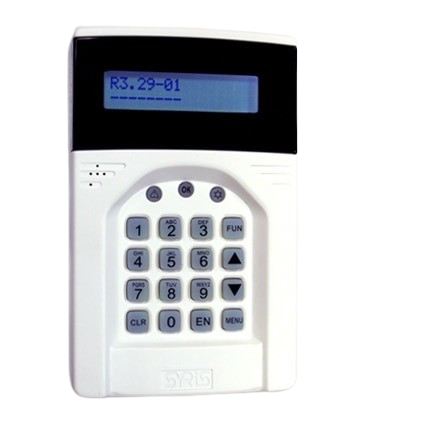

Bộ điều khiển SYRIS SY260NT-V3F
Feature:
• Stand alone or networking system.
• Built-in Anti-Tamper protection / Buzzer.
• Advanced programmable functions for different level within groups to maximize management control.
• Support multiple proximity, keypad, biometrics, smart card and RS485 / Wiegand reader.
• Versatile software features support wide range functions.
• Capability of connecting external backup power supply for emergency.
• Can be off-line use or on-line use.
• Externally programmable interface.
• RS485 interface connection to link up to 99 units on a single Network up to 1Km long.
• Use LCD display reader can show card holder name.
Specification:
| Number of Cards | 6,000 cards |
| Capacity of Records | 2,000 records |
| Number of Readers | 4 ( 2 In / 2 Out ) / 8 ( 4 In / 4 Out ) |
| Door Control | 2 Door / 4 Door |
| Relay Output | Normally 2 / 4, Expandable to 128 |
| Input Points | Normally 4, Expandable to 128 |
| Communication | RS485x 2, Wiegand(26/34/42 bits) x 1 |
| Reader Interface | RS485 |
| Buad Rate | 19,200bps (4,800bps ~ 115,200bps) |
| Group and APPSet / Holidays | 64 groups / 366 holidays |
| Timer / Time zone | 32 timer / 60 time zone |
| Controller ID | 01~99 (SYW95A) / 0001-9999 (SYSOFT-230) |
| User P.I.N Code | 4 Digital Code |
| Anti-passback | Up to 3 level of local control or group Anti-passback |
| Keypad | 16 keys |
| LED Indicator | 3 LED |
| LCD Display | 16 x 2 character |
| Expand Modules | RM100-M1 |
| Support Software | SYSOFT-230/ SYW95A Series |
| Input Voltage / Consumption | 8V ~ 24V DC / 0.3W ~ 3W |
| Operating / Storage Temperature | -20˚C ~ +70˚C / -40˚C ~ +80˚C |
| Ordering Information | •SY260NT2-V3F : 2 Door Controller(LCM case)-V4 •SY260NT4-V3F : 4 Door Controller(LCM case)-V4 |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
