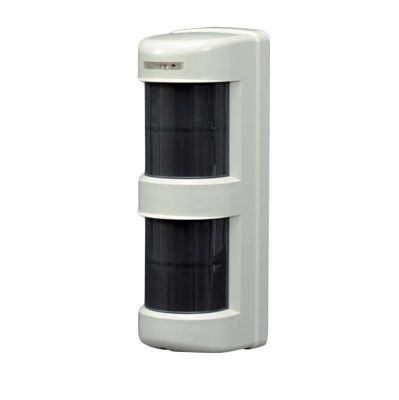

Đầu báo động cảm biến hồng ngoại không dây TAKEX TX-114SR
– Đầu báo PIR: 1 vùng kép chống bảo động giả bởi thú nhỏ, phát hiện dạng mành/ thể tích/ điểm, phạm vi 3 ~ 12 mét, góc tối đa 90°, độ nhạy thay đổi 30%-170%.
– Báo động khi mở nắp.
– Lắp đặt: Ngoài trời (trong nhà).
– Dòng tiêu thụ: 25μA.
– Pin: 3~9VDC Alkaline hoặc Lithium (mua thêm)
Đặc tính kỹ thuật
Model | TX-114SR |
Detection system | Passive infrared |
Coverage | When horizontal detection Angle: 90° |
Detection distance: 40ft (12m) | |
Horizontal zone: 7 zones | |
Downward zone: 7 zones | |
Coverage adjustment | Horizontal: 90 degrees Detection distance: 10' to 40' (3m to 12m) |
(Adjustable by changing the vertical angle of downward curtain) | |
Supply voltage | 3V to 9VDC Alkaline or Lithium Battery |
Operation voltage | 2.3V to 10VDC |
Current consumption | 25μA |
5mA/3V (Test mode) | |
Operation | Solid State Switch N.C./N.O. selectable 10VDC, 0.01A Max |
Alarm output (Blue wires) | |
One shot output when detecting human beings (approx. 2sec) | |
Tamper output (Green wires) | |
Real time output | |
when the cover is detatched from the unit | |
Trouble output | |
Real time output when the unit suffers functional trouble. (from wire of Alarm) | |
Operation LED | Red LED |
Blinking for approx.1min at warming-up | |
Lighting for 1sec at detection during walk-test (LED lights only in a test-mode) | |
Blinking when trouble alarm is issued (Lights once every 5 sec) | |
Sensitivity adjustment | Approx. 30% to 170% (by rotary switch) |
Pulse count | Once/Three times selectable (by dip switch) |
Alarm prohibition time | 10sec/120sec/300sec/900sec selectable (by dip switches) |
Ambient temperature | -4°F to +122°F (-20°C to +50°C) |
Mounting position | Indoor/Outdoor [Wall or Pole] |
Weight | 400g |
– Sản xuất tại Israel.
– Bảo hành: 12 tháng.
