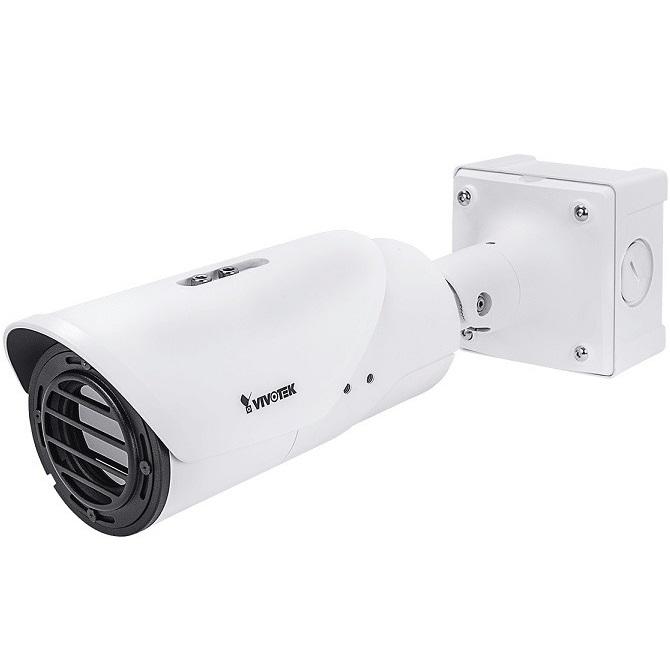

Camera IP cảm biến nhiệt hồng ngoại Vivotek TB9330-E (8.8/19mm)
- Uncooled VOx Infrared Detector
- 384x256 Resolution
- NETD < 50 mk @ F1.0
- H.265 Compression Technology
- Trend Micro IoT Security
- Two-way Audio
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
- UL Certification
- Weather-proof IP66/IP67, Vandal-proof IK10 and NEMA 4X-rated Housing
- VIVOTEK VCA (Video Content Analysis) Support
Đặc tính kỹ thuật
| Camera Features | |
| Image Sensor | Uncooled VOx infrared detector |
| Max. Resolution | Effective pixels: 384×256 Image scale up to: 960×640 |
| Pixel Size | 17 µm |
| Spectral Range | 8 ~ 14 µm |
| Sensitivity | NETD < 50 mk |
| Lens Type | Fixed-focal (Thermal Lens) |
| Focal Length | TB9330-E (8.8mm): f = 8.8 mm TB9330-E (19mm): f = 19 mm |
| Aperture | F1.0 |
| Auto-iris | Fixed-iris |
| Field of View | TB9330-E (8.8mm): 38.3° (Horizontal) 26.1° (Vertical) 45.4° (Diagonal) TB9330-E (19mm): 18.3° (Horizontal) 12.3° (Vertical) 21.9° (Diagonal) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 20x digital zoom (4x on IE plug-in, 5x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 384×256 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 50 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream II |
| Image Settings | Timestamp, text overlay, flip & mirror, configurable brightness, contrast, sharpness |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| VCA | Line crossing detection, field detection, loitering detection |
| VADP Package | Genetec package, Trend Micro IoT Security, Stratocast |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection Audio input Audio output DC 12V power input AC 24V power input Digital input*1 Digital output*1 BNC RS485 |
| LED Indicator | System power and status indicator |
| Power Input | DC12V AC24V (Redundant Power) IEEE 802.3at PoE Class 4 |
| Power Consumption | PoE: Max. 12.5 W DC 12V: Max. 10 W AC 24V: Max. 11 W |
| Dimensions | TB9330-E (8.8mm): 121 x 121 x 471.2 mm (with junction box) TB9330-E (19mm): 121 x 121 x 452.2 mm (with junction box) |
| Weight | TB9330-E (8.8mm): 2,080 g TB9330-E (19mm): 2,000 g |
| Casing | IP66, IP67, IK10(Metal Housing), NEMA 4X |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4 |
| Working temperature | -50°C ~ 60°C (-58°F ~ 140°F) |
| Humidity | 90% |
- Bảo hành: 36 tháng.
