Description

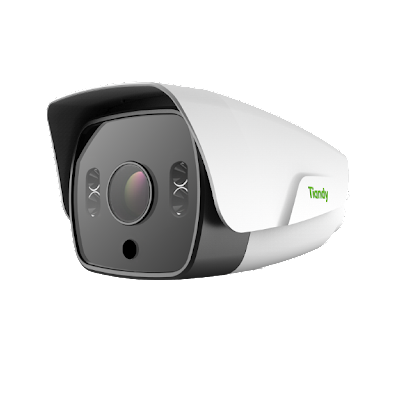

Tiandy 2MP Super Starlight IR bullet camera. 4mm fixed lens
- Super Starlight Ultra Low Light 0.0004lux
- Up To 1080P, 1920×1080@30fps
- S+265、H.265/H.264 HP/MP/BP/M-JPEG Codec
- Support perimeter alert and tripwire alert, Person-vehicle separation
- VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/People counting/Face detection/Audio Abnormal Detection/Video Abnormal Detection
- Support P2P ,the APP support setting up alert, alert plan and line drawing, uploading customized alert sounds
- Mechanical WDR 140dB
- NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC
- Interface Built-in Speaker & mic, Audio in/out 1/1,Alarm in/out 1/0, MicroSD Card Slot, up to 128GB, USB Storage up to 128GB ,Reset Button
- TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V), IP67
- Operating Conditions -35℃～65℃, 0～95% RHG
- CE, FCC
Specifications
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.0002Lux@ (F1.0, ACG ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Lens | |
| Lens Type | Fixed |
| Focus | 4mm |
| Lens Mount | M12 |
| Aperture | F1.0, Fixed |
| FOV | Horizontal field of view: 88.4° |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 1920×1080 |
| Main Stream | PAL: 25fps (1920×1080, 1280×960, 1280×720) |
| NTSC: 30fps (1920×1080, 1280×960, 1280×720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | 4CIF |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web
browser |
| Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
| ROI | Support 7 fixed region of coding |
| OSD | 16×16, 24×24,32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week,
Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privace Mask | Yes |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error,
IP Address Conflict, MAC Address Conflict, FTP Server Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering,
Running, Parking, Video Abnormal, Audio Abnormal, Face Detection, Demographics |
| Early Warning(EW) | Yes |
| Smart Codec | N/A |
| Smart Image | N/A |
| Smart Alarm | N/A |
| Network | |
| ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to
NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP,
IPV4, NTP, RTSP, SMTP, IGMP, 802.1X, QoS, PPPoE |
| Remote Connection | ≤7 |
| System Compatibility | ONVIF (PROFILE S), SDK, CGI, P2P |
| Client | Easy7, EasyLive |
| Web Version | Web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio | 1/1, Mic in |
| Alarm | 1/0 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 128 GB |
| General | |
| Firmware Version | NVSS_V14.0.6.20180928 |
| Web Client Language | 12 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese,Traditional Chinese, Thai, French, Polish, Dutch |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±20%/PoE |
| Power Consumption | MAX: 8W(12V) MAX: 9.5W(POE) |
| Protection | IP67 |
| Heater | N/A |
| Dimensions | 204×109×96 mm (8.03*4.29*3.78 inch) |
| Weight | 0.75kg (1.65lb) |
