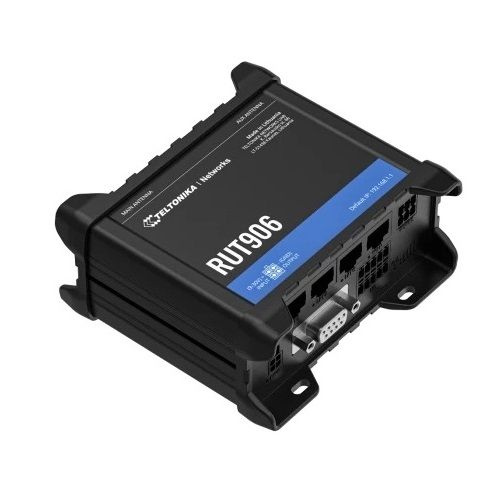

Router 3G/4G công nghiệp Teltonika RUT906
- Thiết bị định tuyến có thu phát vô tuyến kèm phụ kiện RUT906.
- Hỗ trợ kết nối 4G (LTE) lên đến 150Mbps, 3G lên đến 42Mbps, 2G lên đến 236.8kbps.
- Wifi chuẩn 802.11b/g/n băng thông tối đa 150Mbps.
- 100 user kết nối đồng thời, bán kính phát lên đến 25m.
- 2 Slot SIM Card (1 chạy, 1 dự phòng).
- 1 port WAN (10/100Mbps) Ethernet.
- 3 port LAN (10/100Mbps) Ethernet.
- Hỗ trợ cổng kết nối RS232, RS485, TCP, USB.
- Nhiệt độ hoạt động: -40°C ~ 75°C.
Đặc tính kỹ thuật
| Model | RUT906 |
| Mobile | |
| Mobile module | 4G (LTE) – Cat 4 up to 150 Mbps 3G – Up to 42 Mbps 2G – Up to 236.8 kbps |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list | Operator black/white list |
| Band management | Band lock, Used band status display |
| Wireless | |
| Wireless mode | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| WiFi security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| SSID | ESSID stealth mode |
| WiFi users | Up to 100 simultaneous connections |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
| Ethernet | |
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN | 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Firewall | Port forward, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relay |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, others can be configured manually |
| Security | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| VLAN | Port and tag-based VLAN separation |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| SSTP | SSTP client instance support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| Serial | |
| RS232 | DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate |
| RS485 | RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate |
| Serial functions | Console, Serial over IP, Modem |
| General | |
| Power Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Passive PoE over spare pairs |
| Ethernet | 4 x RJ45 ports, 10/100 Mbps |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
| Antennas | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Casing material | Aluminium housing, plastic panels |
| Dimensions (W x H x D) | 109.5 x 50 x 100 mm |
| Weight | 295g |
| Operating temperature | -40°C ~ 75°C (10 % to 90 % non-condensing) |
| Ingress Protection Rating | IP30 |
- Bảo hành: 12 tháng.
