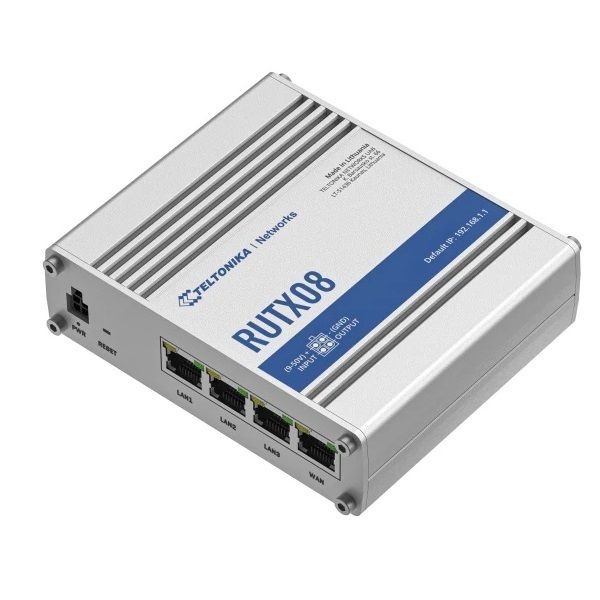

Router công nghiệp Teltonika RUTX08
- 4 port Gigabit Ethernet: 1 port WAN/LAN + 3 port LAN.
- Vỏ full nhôm, chịu được môi trường khắc nghiệt, nhiệt độ hoạt động từ -40°C đến 75°C. Đạt chuẩn IP30.
- Hỗ trợ định tuyến tĩnh, định tuyến động (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP).
- Hỗ trợ các tùy chọn bảo mật mở rộng bao gồm ngăn chặn tấn công, lọc web và kiểm soát truy cập.
- Dải điện áp đầu vào 9-50 VDC và khả năng cấp nguồn qua cổng LAN 1(PoE Passive).
- Hệ điều hành RutOS dựa trên OpenWrt.
- Tương thích với nền tảng quản lý từ xa Teltonika RMS.
- Hỗ trợ nhiều tiêu chuẩn VPN như: IPsec, GRE, PPTP, L2TP, OpenVPN, Stunnel.
- Hỗ trợ nhiều giao thức kết nối công nghiệp như: MQTT, Modbus TCP, BGP, GRE.
Đặc tính kỹ thuật
| Model | RUTX08 |
| Ethernet | |
| WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port |
| DDNS | Supported >25 service providers, others can be configured manually |
| Security | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag based VLAN separation |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3 support |
| SSTP | SSTP client instance support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| General | |
| Power Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af, 802.3at and 802.3bt standards |
| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
| I/Os | 1 x Digital Input, 1 x Digital Output on 4 pin power connector |
| USB | 1 x USB-A port for external devices |
| Casing material | Aluminium housing with DIN tail mounting option |
| Dimensions (W x H x D) | 115 x 32.2 x 95.2 mm |
| Weight | 345g |
| Operating temperature | -40°C ~ 75°C (10 % to 90 % non-condensing) |
| Ingress Protection Rating | IP30 |
- Bảo hành: 12 tháng.
