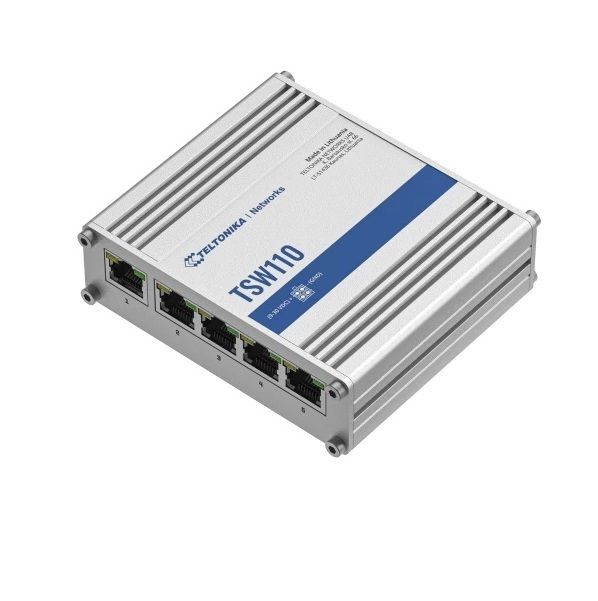

5-port Gigabit Unmanaged Ethernet Switch Teltonika TSW110
- 5 cổng Ethernet tốc độ Gigabit.
- Băng thông (không chặn): 10Gbps.
- Bảng địa chỉ MAC: 2K.
- Bộ đệm gói tin: 128KB.
- Khung Jumbo: 9KB.
- Hỗ trợ chuẩn IEEE802.3az EEE (Ethernet tiết kiệm năng lượng hiệu quả).
- Tính năng kiểm soát lưu lượng IEEE 802.3x.
- Tính năng tự động phát hiện cáp MDI/MDI-X.
- Nguồn adapter kèm theo thiết bị: 9VDC – 1A.
- Phạm vi nhiệt độ hoạt động: -40°C đến +75°C.
Đặc tính kỹ thuật
| Model | TSW110 |
| Ethernet | |
| LAN | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Performance | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packer buffer | 128KB |
| MAC address table size | 2K entries |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Possibility to power up through ETH1 ports |
| Power consumption | < 0.4 W/ < 1.8 W |
| Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 4-pin power connector |
| Other | 1 x Grounding screw |
| General | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 227g |
| Operating temperature | -40 °C to 75 °C (10% to 90% non-condensing) |
| Ingress Protection Rating | IP30 |
- Bảo hành: 12 tháng.
