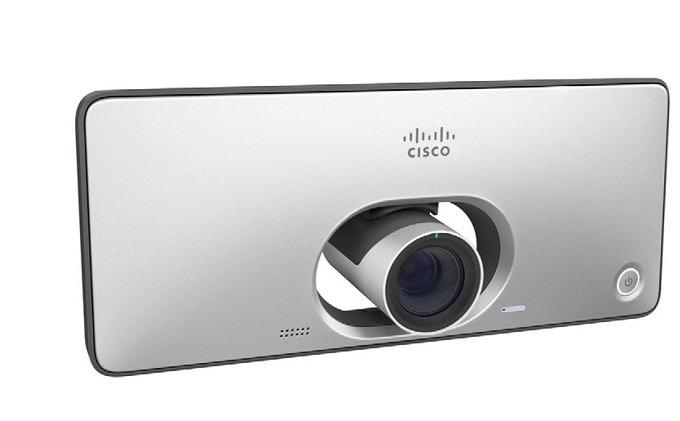

Thiết bị hội nghị truyền hình All-in-one CISCO SX10 CTS-SX10N-K9
- Thiết bị hội nghị truyền hình CTS-SX10N-K9 thuộc dòng All-in-one sử dụng cho phòng họp nhỏ dưới 10 người (Huddle Room).
- Một bộ thiết bị hội nghị truyền hình Cisco CTS-SX10N-K9 tiêu chuẩn bao gồm: Camera, micro, bộ giải mã.
- Chuẩn nén hình ảnh: Full HD 1080p.
- Camera Full HD 5x zoom (2.5x optical + 2x digital).
- Băng thông: 3 Mbps.
- Góc mở camera: 83°.
- Có thể mở rộng thêm 1 camera đa hướng.
- Thiết bị phần cứng chuyên dụng chuẩn quốc tế ITU-T, giao thức: SIP / BFCP / H.264 SVC.
- Nguồn điện: 100 - 240 VAC.
- Hỗ trợ cấp nguồn qua mạng PoE (Power over Ethernet).
Đặc tính kỹ thuật
| Model | CTS-SX10N-K9 |
| Software compatibility | Cisco TelePresence Software Version TC 7.1 or later |
| Cisco Collaboration Endpoint Software Version 8.0 or later | |
| Integrated HD camera | 5x zoom (2.65 optical and digital zoom) |
| +5°/-25° tilt, +/-30° pan | |
| 51.5° vertical field of view | |
| 83° horizontal field of view | |
| F-value from 2.1 | |
| 1920 x 1080 pixels progressive @ 30 fps | |
| Automatic or manual focus, brightness, and white balance | |
| Far-end camera control | |
| Automatic flipping of picture when upside down | |
| User interface | TRC6 remote control and on-screen Graphical User Interface |
| Optional Cisco Touch 10 control unit | |
| System management | Total management using embedded Telnet, SSH, XML, and SOAP |
| Remote software upload using web server, secure copy (SCP), HTTP, and HTTPS | |
| Remote control and on-screen menu system | |
| Directory services | Support for local directories (My Contacts) |
| Corporate directory (through Cisco UCM and Cisco TelePresence Management Suite [TMS]) | |
| Server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite) | |
| Call History with received, placed, and missed calls with date and time | |
| Power | PoE enabled |
| Auto-sensing power supply | |
| 100 - 240 VAC, 50/60 Hz | |
| Maximum 12 watts in normal operation | |
| Operating temperature and humidity | 0° to 40°C (32° to 95°F) at Relative Humidity 10% - 90% (noncondensing) |
| Storage and transport temperature | -20° to 60°C (60° to 140°F) at Relative Humidity 10% - 90% (noncondensing) |
| SX10 codec dimensions | Width: 10.8 inches (27.5 cm) |
| Height: 4.6 inches (11.7 cm) | |
| Depth: 3.6 inches (9.1 cm) (with max tilt downward on camera) | |
| Weight: 2.0 pounds (0.9 kg) | |
| Bandwidth | Up to 3 Mbps |
| Minimum bandwidth for resolution/frame rate | 720p30 from 768 kbps |
| 1080p30 from 1472 kbps | |
| Firewall traversal | Cisco TelePresence Expressway Technology |
| Video standards | H.263, H.263+, and H.264 |
| Video inputs | Two video inputs (HDMI or VGA selectable through user interface) |
| Supported Formats: 640x480 (VGA), 720x480, 704x576 (4CIF), 800x600 (SVGA), 848x480, 1024x768 (XGA) | |
| Extended Display Identification Data (EDID) | |
| Video output | HDMI Output Supported Formats: 1920 x 1080@60 fps (1080p60) |
| VESA Monitor Power Management | |
| Extended Display Identification Data (EDID) | |
| Live video resolutions | Live Video Resolutions (Encode and Decode): 176 x 144@30 (QCIF) (Decode only), 352 x 288@30 (CIF), 512 x 288@30 (w288p), 576 x 448@30 (448p), 768 x 448@30 (w448p), 704 x 576@30 (4CIF), 1024 x 576@30 (w576p), 640 x 480@30 (VGA), 800 x 600@30 (SVGA), 1024 x 768@30 (XGA), 1280 x 768@30 (WXGA), 1280 x 720@30 (HD720p), 1920 x 1080@30 (HD1080p) |
| Audio standards | 64 kbps MPEG4 AAC-LD, OPUS, G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729 |
| Audio features | High-quality 20-kHz mono |
| Two acoustic echo cancellers | |
| Automatic Gain Control (AGC) | |
| Automatic noise reduction | |
| Active lip synchronization | |
| Audio inputs | One internal microphone |
| One external microphone, 4-pin mini-jack (Table Microphone 20 or Cisco Ceiling Microphone) | |
| One HDMI audio-in | |
| Audio outputs | One line out, mini-jack |
| One HDMI, (digital main audio) | |
| Dual stream | H.239 (H.323) dual stream (CE8.2 or later) |
| BFCP (SIP) dual stream | |
| Resolution up to 1080p5 (CE8.0 or later) | |
| Multipoint support | Cisco Ad-Hoc Conferencing (requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor) |
| Protocols | H.323, SIP |
| H.323 (CE8.2 or later) | |
| Embedded encryption | SIP/H.323 point-to-point (H.323 with CE8.2 or later) |
| Standards-based: Advanced Encryption Standard (AES) | |
| Automatic key generation and exchange | |
| Supported in dual stream | |
| IPv6 network support | Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ) |
| Support for both static and autoconfiguration (stateless address autoconfiguration) | |
| Security features | Management through HTTPS and SSH |
| IP administration password | |
| Menu administration password | |
| Disable IP services | |
| Network settings protection | |
| Network interfaces | One PoE-enabled LAN connector (RJ-45) 100-Mbit |
| Other interfaces | One USB port for future usage |
| One Micro USB port for debugging |
- Bảo hành: 12 tháng.
