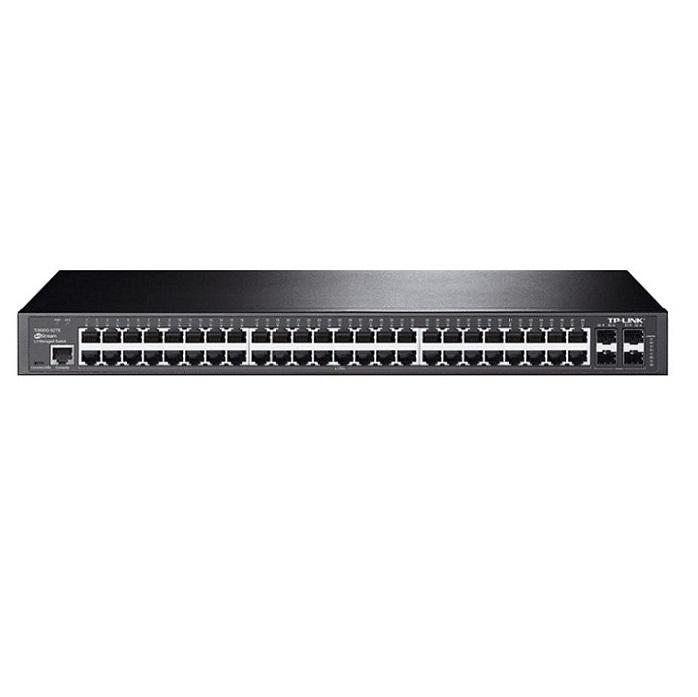

JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots TP-Link T2600G-52TS (TL-SG3452)
- 48 cổng RJ45 10/100/100Mbps + 4 slot 1000Mbps SFP.
- QoS L2/ L3/ L4 và ICMP Snooping tối ưu hóa cho các ứng dụng âm thanh và video.
- Với SNMP, RMON, WEB/ CLI, mang lại các tính năng quản trị đa dạng.
- Địa chỉ MAC: 16K.
- Bộ nhớ gói dữ liệu đệm: 1.5MB.
- Nguồn điện: 100 - 240V, 50/60Hz.
- Công suất tiêu thụ: 33.52W.
- Kích thước: 440 x 220 x 44 mm.
- Trọng lượng: 4.5kg.
Đặc tính kỹ thuật
Interfaces | 48 10/100/1000Mbps RJ45 |
4 1000Mbps SFP | |
Console Port | 1 RJ45 Console Port |
1 Micro-USB Console Port | |
L2 Features | Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups, containing 8 ports per group |
Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect | |
Loopback Detection | |
Flow Control: 802.3x Flow Control, HOL Blocking Prevention | |
Port Mirroring: One-to-One, Many-to-One, Flow-Based, Tx/Rx/Both | |
L2 Multicast | Supports 1000 (IPv4, IPv6) IGMP groups |
IGMP Snooping: IGMP v1/v2/v3 Snooping, IGMP Fast Leave, Multicast VLAN, IGMP Snooping Querier, IGMP Authentication, Limited IP Multicast (256 proles and 16 entries per prole), Static Multicast | |
MLD Snooping: MLD v1/v2 Snooping, MLD Snooping Querier, Fast Leave, Limited IP Multicast (256 proles and 16 entries per prole), Static Multicast | |
L3 Features | 16 IP Interfaces: Supports ipv4 interface, supports ipv6 interface |
Proxy ARP | |
Static Routing: 48 static routes | |
VLAN | VLAN Group: Max. 4K VLAN Groups |
802.1Q Tagged VLAN | |
MAC VLAN: 256 Groups | |
Protocol VLAN | |
Private VLAN | |
GVRP | |
VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ | |
Voice VLAN | |
Qos | 802.1p CoS/DSCP priority |
8 priority queues | |
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR | |
Bandwidth Control: Port/Flow based Rating Limiting | |
Smoother Performance | |
Actions for flows: Mirror (to supported interface), Redirect(to supported interface), Rate Limit, QoS Remark | |
ACL | Supports up to 300 entries (up to 600 by Access Template) |
Time-based ACL | |
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, EtherType | |
Standard IP ACL: Source IP, Destination IP | |
Extended IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/ UDP Port, DSCP/IP TOS | |
Switching Capacity | 104Gbps |
Forwarding Rate | 77.4Mpps |
MAC Address Table | 16K |
Packet Buffer Memory | 1.5MB |
Jumbo Frame | 9216 Bytes |
Power Supply | 100 - 240V, 50/60Hz |
Maximum Power Consumption | 33.52W (220V/50Hz) |
Dimensions | 440 x 220 x 44 mm |
Weight | 4.5kg |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
