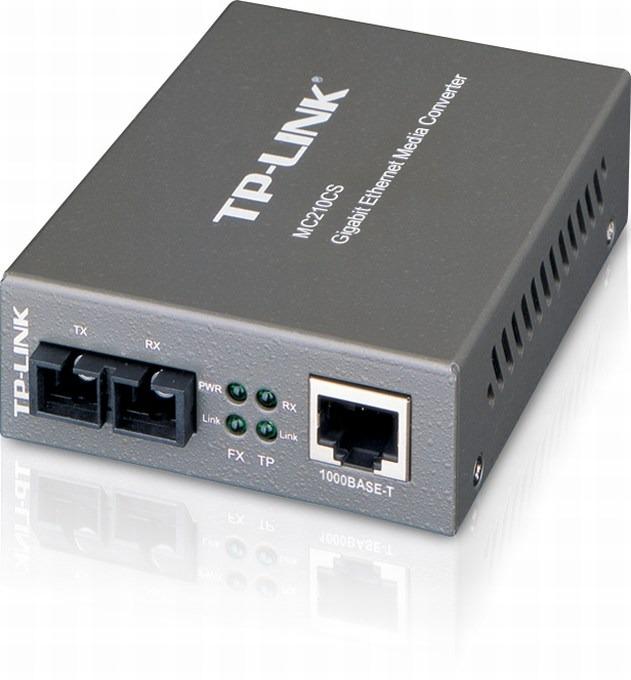

Gigabit Single-mode Media Converter TP-LINK MC210CS
The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
- Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 15km
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
MEDIA CONVERTER & MODULE | |
Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
Basic Function | Full Duplex Flow Control (IEEE 802.3x) |
Extends fiber distance up to 15km | |
Ports | 1 1000M SC port |
1 1000M RJ45 port (Auto MDI/MDIX) | |
Network Media 1000BASE-FX | Single-mode Fiber |
Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) |
EIA/TIA-568 100Ω STP (maximum 100m) | |
LED Indicators | PWR, LINK, RX |
Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
Power Supply | External Power Adapter |
Safety & Emission | FCC, CE |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing | |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
