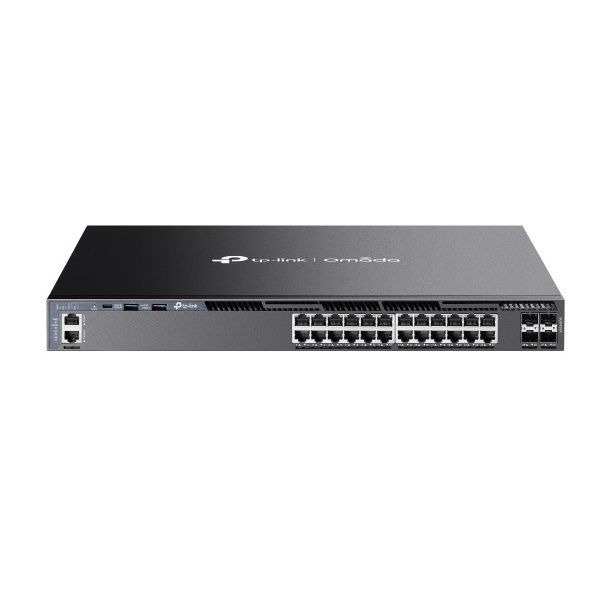

24-Port Gigabit + 4-Slot 10G SFP+ L3 Switch TP-LINK SG6428X

TP-LINK SG6428X

  • MS 0017640
  • TP-LINK
Giá : Liên hệ

24-Port Gigabit + 4-Slot 10G SFP+ Stackable L3 Managed Switch TP-LINK SG6428X

24-Port Gigabit + 4-Slot 10G SFP+ Stackable L3 Managed Switch TP-LINK SG6428X

- 24x Gigabit RJ45 ports and 4x 10 Gbps SFP+ slots.

- 128Gbps switching capacity per unit.

- Physical stacking for built-in redundancy and performance.

- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay.

- Security Strategies: ACL, Port Security, DoS Defend, 802.1X.

- Highly Available with two internal fixed power supplies, VRRP, and ERPS.

- Centralized cloud management via the Omada SDN controller.

- Standalone management via web, CLI, SNMP, and RMON.

Thông số kỹ thuật

HARDWARE FEATURES
Interface- 24× 10/100/1000 Mbps RJ45 Ports
- 4× 10G SFP+ Slots
- 2× USB 2.0 Ports
- 1× RJ45 Console Port
- 1× USB Type-C Console Port
- 1× RJ45 Management Port
Fan QuantityFour Internal Fixed Fans
Power SupplyTwo Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H )440 × 380 × 44 mm
MountingRackmountable
Max Power Consumption28.4 W (220 V/50 Hz)
Max Heat Dissipation96.91 BTU/hr (220 V/50 Hz)
PERFORMANCE
Switching Capacity128 Gbps per Unit
StackingStacking Number: 4
Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Packet Forwarding Rate95.2 Mpps
MAC Address Table32 K
Packet Buffer Memory3 MB
Jumbo Frame9 KB
SOFTWARE FEATURES
Quality of Service• Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 Features• IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
• Static Routing
- Max 1,024, IPv6: Max 512
• Host Route Table: Max 6,100 entries
• RIP: Version v1/v2, Max 8,190
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination
• Static ARP: 512 static entries
• Dynamic ARP: 7,680 dynamic entries
• Proxy ARP
• DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
• DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features• Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• Supports 2,048 IGMP groups
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• PIM-DM (IPv4)
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
Advanced Features• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
VLAN• Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN
• Voice VLAN
• Private VLAN
Security• Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control
MANAGEMENT
Omada AppYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud AccessYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of the Omada Cloud-Based Controller.
Management Features• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• EEE
OTHERS
Package Contents• SG6428X Switch
• 2× Power Cords
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment• Operating Temperature: 0–45 ℃ (32–113 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

- Bảo hành: 24 tháng.
