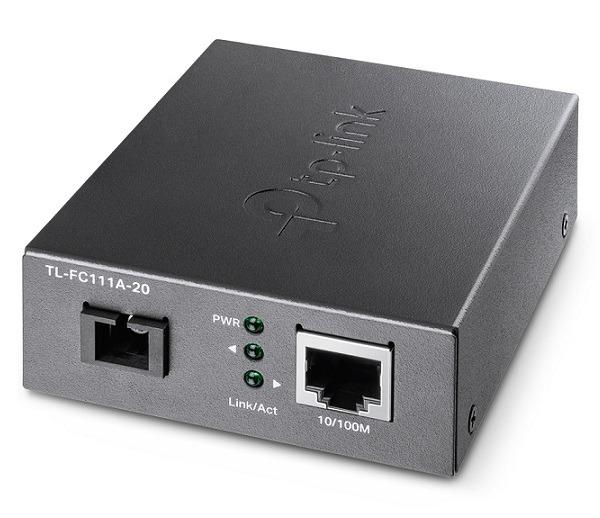

10/100Mbps WDM Media Converter TP-LINK TL-FC111A-20
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Ranges up to 20km (12.4 miles)
- Work with TL-FC111B-20 as a pair
Specifications
| NETWORK | |
| Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
| ENVIRONMENT | |
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions (W x D x H) | 94.5*73*27 mm |
| Wave Length | 1550 nm TX, 1310 nm RX |
| ANTENNA | |
| Connector Type | 1 SC fiber optic, 1 RJ45 jack |
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE802.3u |
| Basic Function | Auto-negotiation of half-duplex / full-duplex transfer mode Full-duplex flow control (IEEE 802.3x) Half-duplex flow control (Backpressure) Extends fiber distance up to 20km (12.4 miles) |
| Ports | 1x 100M single SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX) |
| WDM TX | 1550 nm |
| WDM RX | 1310 nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 95 × 73 × 27 mm |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| Safety & Emission | FCC, CE, RoHS |
| Fiber Type | 9/125 μm single-mode fber (≤20 km) |
| Environment | Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Bảo hành: 36 tháng.
