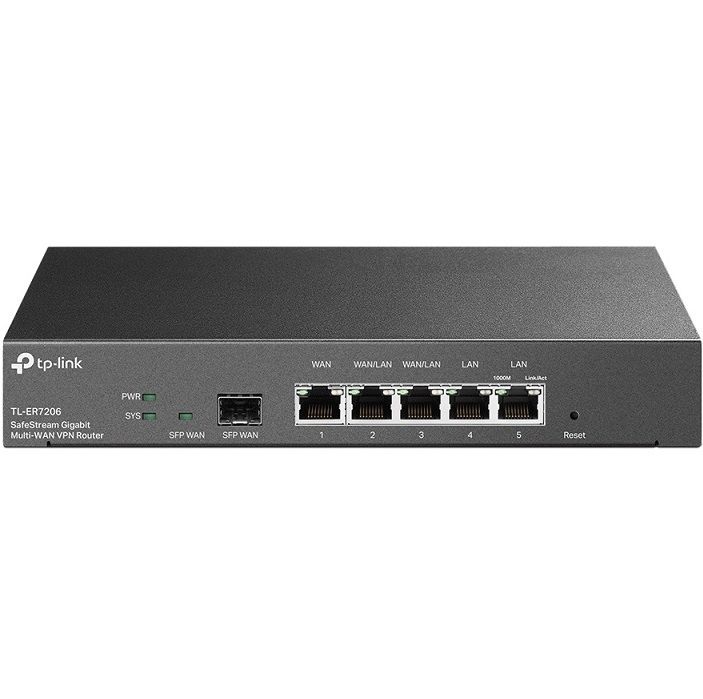

SafeStream Gigabit Multi-WAN VPN Router TP-LINK TL-ER7206
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
- Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN, 50× L2TP, and 50× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | 1 Fixed Gigabit SFP WAN Port 1 Fixed Gigabit RJ45 WAN Port 2 Fixed Gigabit RJ45 LAN Ports 2 Changeable Gigabit RJ45 WAN/LAN Ports |
| Button | Reset Button |
| Power Supply | 100–240 V~50/60 Hz |
| Flash | SPI 4MB + NAND 128MB |
| DRAM | 512MB |
| LED | PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions (W x D x H) | 226 × 131 × 35 mm |
| PERFORMANCE | |
| Concurrent Session | 150 |
| IPsec VPN Throughput | 291.6 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | Static/Dynamic IP PPPoE PPTP L2TP |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| IPv6 | Developing |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing Policy Routing |
| Bandwidth Control | IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering§ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | SPI Firewall VPN Passthrough FTP/H.323/PPTP/SIP/IPsec ALG DoS Defence, Ping of Death Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IKEv1/v2 MD5, SHA1 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server 10 PPTP VPN Clients 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server 10 L2TP VPN Clients 50 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server 10 OpenVPN Clients 50 OpenVPN Tunnels |
| SECURITY | |
| Filtering | WEB Group Filtering URL Filtering Web Security |
| ARP Inspection | Sending GARP Packets ARP Scanning§ IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | No Authentication Simple Password Hotspot（Local User / Voucher* / SMS* / Radius*） External Radius Sever External Portal Sever |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Syslog Support |
| Management Features | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration ZTP (Zero-Touch Provisioning) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0~40 ℃ (32–104 ℉); Storage Temperature: -40~70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 36 tháng.
