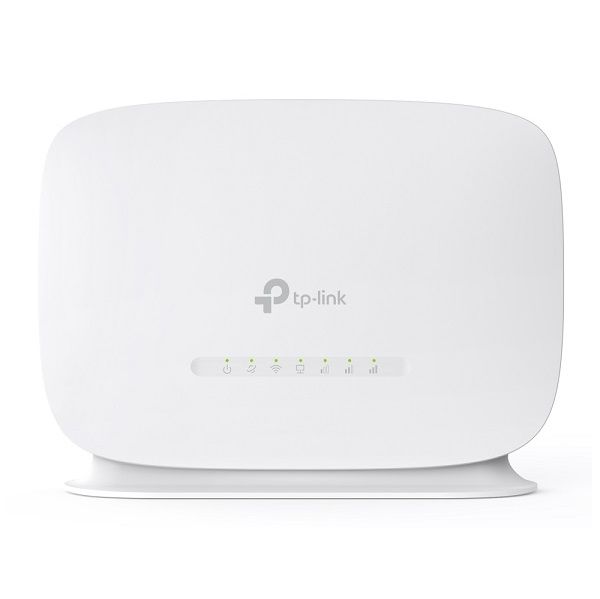

300Mbps Wireless N 4G LTE Router TP-LINK TL-MR105
- Cutting-edge 4G network: Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150Mbps.
- Plug a SIM card and play: No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests.
- Wi-Fi router mode: Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
Specifications
| HARDWARE FEATURES | |
| Interface | 1 10/100Mbps LAN Port 1 10/100Mbps LAN/WAN Port 1 Nano SIM Card Slot |
| Button | Reset/WPS Button |
| External Power Supply(EU) | 9V/0.85A |
| Dimensions (W x D x H) | 174×130×60 mm |
| Antenna | 2× Internal 4G/3G Antennas 2× Internal Wi-Fi Antennas 2× External 4G/3G Antenna Ports |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps |
| Reception Sensitivity | 11g 54M: -74dBm 11n HT20: -73dBm 11n HT40: -70dBm |
| Transmit Power | < 20 dBm (2.4 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SOFTWARE FEATURES | |
| Security | IPv4 SPI Firewall, IP and MAC Address Binding |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | 300 Mbps Wireless N 4G LTE TL-MR105 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Nano SIM Card |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Bảo hành: 24 tháng.
