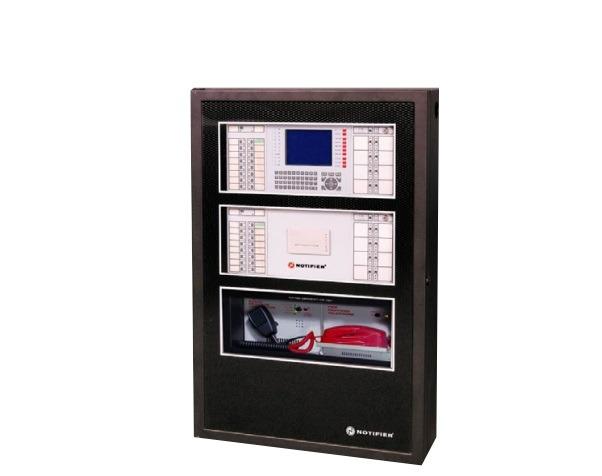

Trung tâm báo cháy 1 Loop NOTIFIER N6000
- The N-6000 is an intelligent Fire Alarm Control Panel designed for medium size facilities. Fire emergency detection and evacuation are extremely critical to life safety, and the N-6000 is ideally suited for these applications. The N-6000 is a new line of products from NOTIFIER.
- Two to eight isolated intelligent Signaling Line Circuits (SLC) Style 4 or 6.
- Up to 198 detectors (any mix of photo or thermal); OR 99 detectors (any mix of photo or thermal) and 99 modules (N.O. manual stations, two-wire smoke, notification, or relay) per SLC.
- 198 addressable devices per loop.
- Total capacity of 1,584 addressable devices per Fire Alarm Control Panel.
- Large 1060-character LCD backlit display (20 lines × 53 characters).
- Network option – supports N-6000 or N-NCS Network Control Station.
- Built-in Alarm, Trouble and Supervisory relays.
- N-VFT online/ offline program option.
- Built-in Degraded Mode option. In the event of a CPU failure, the system is capable of generate alarm if a fire condition is present.
- History files with 4,000-event capacity in nonvolatile memory.
Thông số kỹ thuật
- Primary input power, MPS-350W:
+ 220VAC, 50/60 Hz, 1.5 Amps; 110VAC, 50/60 Hz, 3.0 Amps;
+ Total output 24V power: 14.6 A in alarm;
+ General purpose power: 1.0A;
+ Battery charger ranges: 25AH – 55AH, use separate cabinet for batteries over 25AH;
+ Float Rate: 27.6V.
- Temperature and humidity ranges:
+ Temperature: 0 to 50 ºC;
+ Humidity: 5% to 95% non-condensing.
- Bảo hành: 12 tháng.
