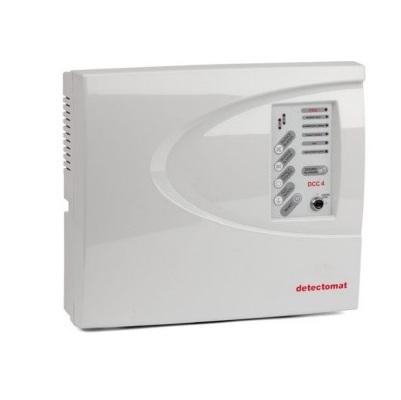

Trung tâm báo cháy 4 kênh DETECTOMAT DCC4
- Clear display and easy operation with LED displays and operation keys.
- Connection possibility for 4 conventional zones for the use with the CT 3000 fire detection components with up to 20 detectors per zone.
- Integrated power supply according to EN 54-4: 1997/A2: 2006 with 1 output for external devices rated at 24 VDC.
- Independent connection of detector and signalling device zones.
- Integrated 'one-man-revision mode'.
- Manual control of signalling devices via seperate input.
Thông số ky thuật
| Model | DCC4 |
| Supply Voltage | 230 VAC ( ±10 %) |
| Emergency Supply | 1 x 12V/ 7Ah |
| Power Supply | 24 VDC/300 mA |
| Quiescent Current | 2mA to 10mA |
| Alarm Current | 10 mA to 110 mA |
| Display | 25 LED-for status messages, thereof 11 LEDs covered; 6 keys for operation |
| Protection class | IP30 |
| Ambient temperature | -5°C to +40°C |
| Humidity | max. 95% |
| Dimensions (H x B x T) | 288 mm x 340 mm x 98 mm |
| Weight | 2,3 kg (w/o battery) |
| Material | ABS, Glass |
| Standards | EN 54-2: 1997/A1: 2006; EN 54-4: 1997/A2: 2006 |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
